Versatile NFC-Enabled LED Driver with Dimming Options
This advanced LED driver offers 1% deep smooth dimming, ensuring seamless transitions in lighting levels. It boasts a high power factor and efficiency, aligning with the latest standards for energy conservation and reduced operational costs. Suitable for both commercial and residential lighting solutions, it provides versatility across various applications. The driver can be programmed using an NFC app, allowing for precise adjustments and helping to reduce inventory by accommodating diverse requirements with a single model.
Top Features and Benefits:

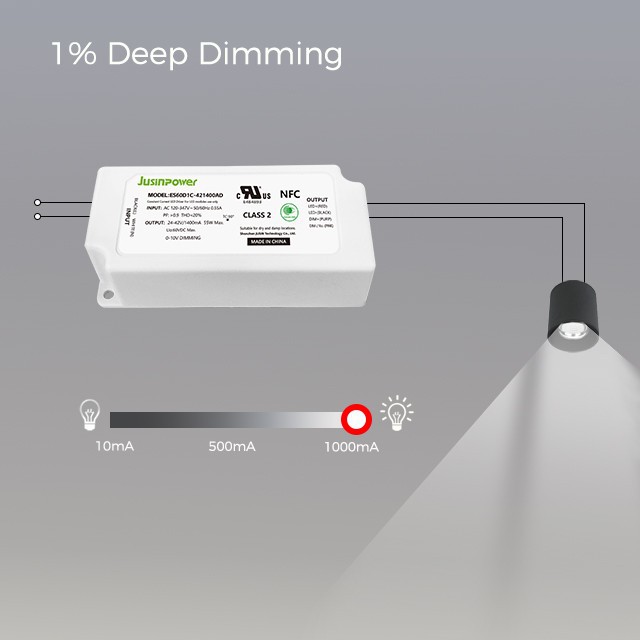

1.1% deep smooth dimming
2.High power factor and efficiency
3.Suitable for various commercial and residential lighting solutions

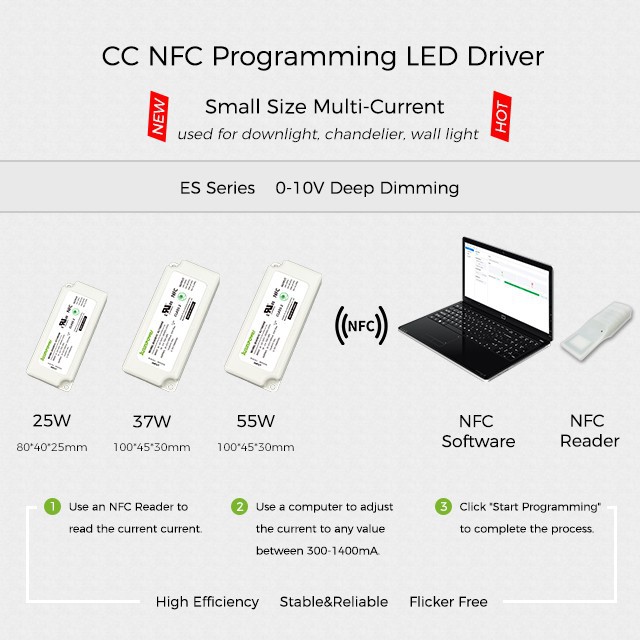

4.Using the NFC programming APP, ensuring high accuracy and helping to reduce inventory

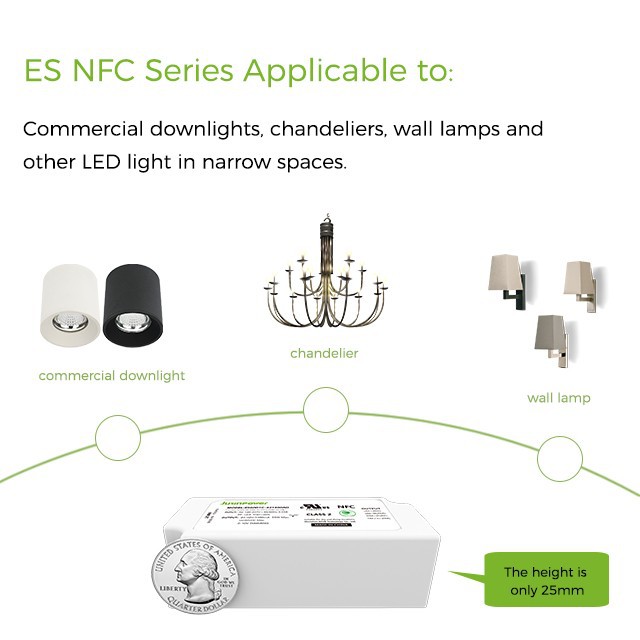

Application Scenario:
Commercial Indoor Lighting: This LED driver is primarily used in commercial indoor lighting applications, such as office spaces, retail stores, and restaurants.

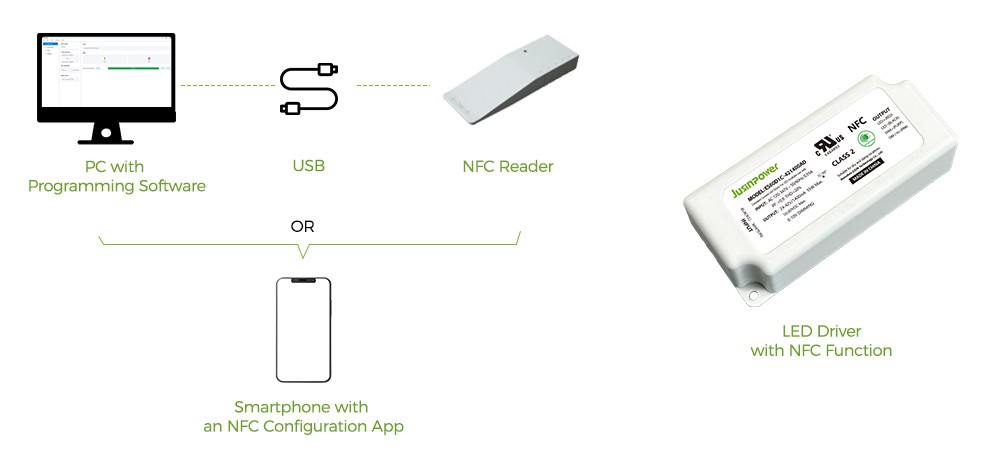

NFC Instructions:

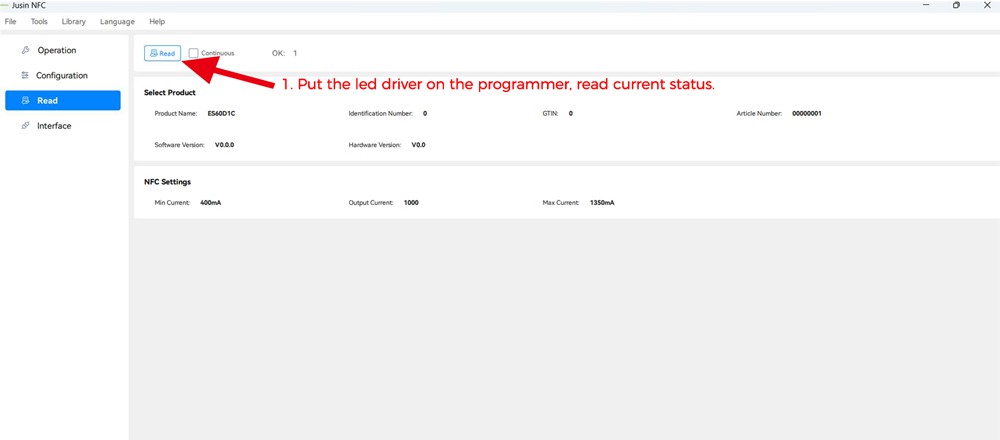

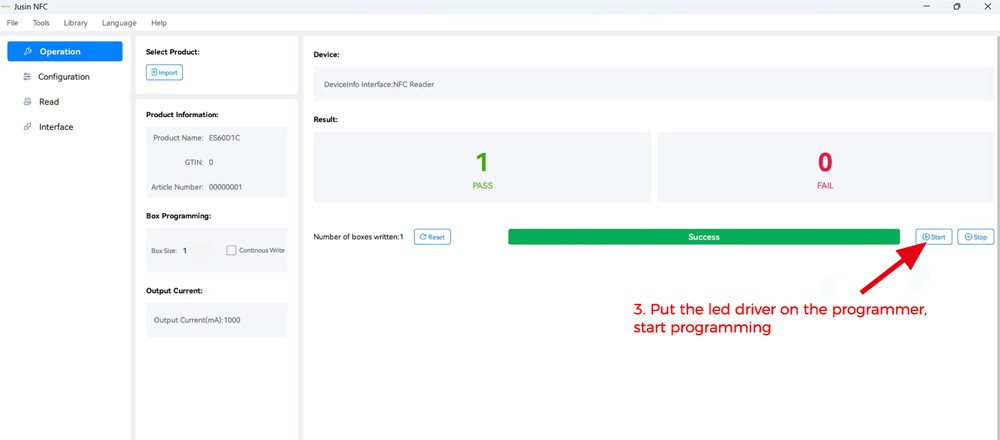

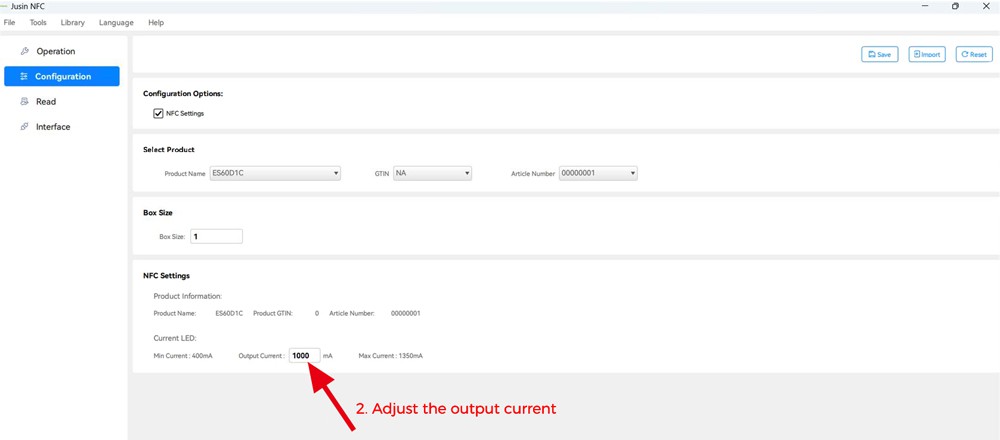

Use NFC programming tools to easily adjust the output current to meet different application requirements.

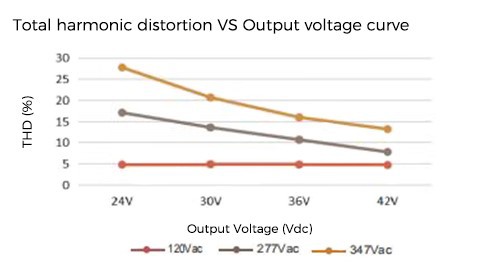

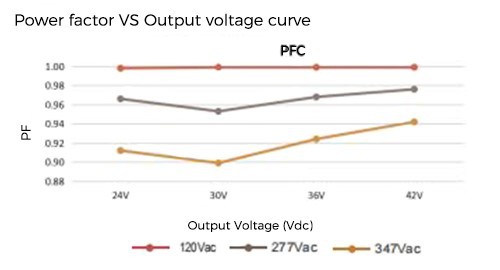

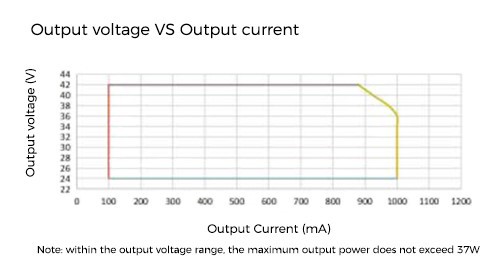

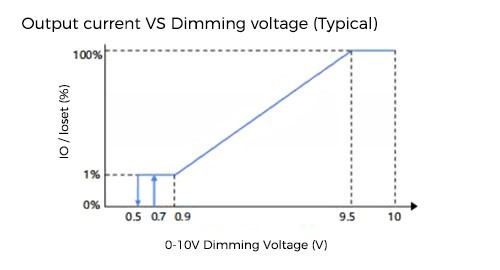

Electrical Curve Diagram:

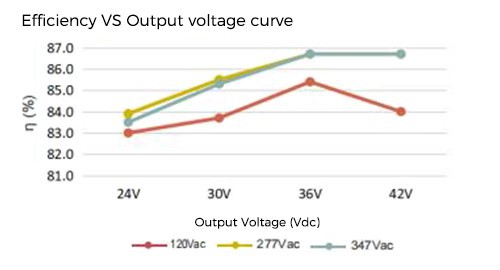

Measured at Ta 25℃, output current 600mA

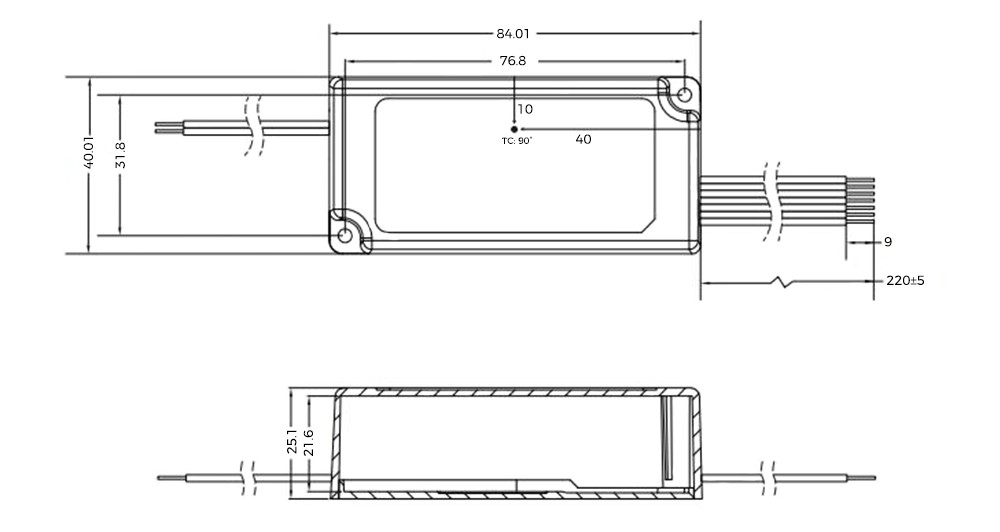

Dimension (mm):

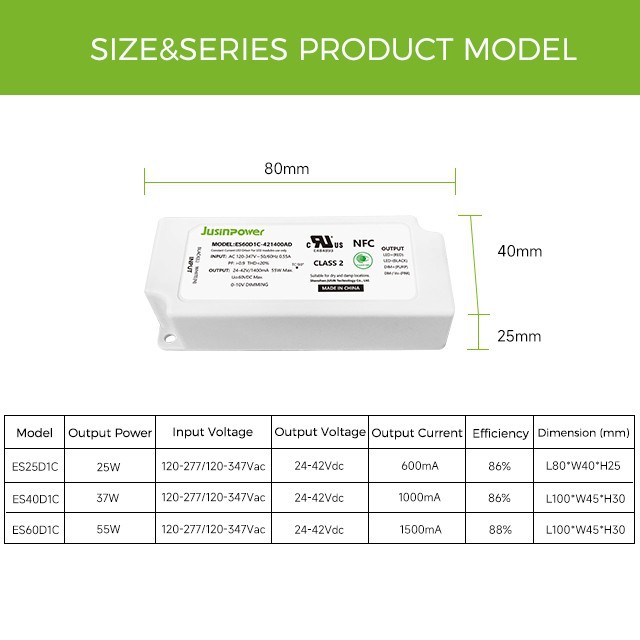

Length: 80mm Width: 40mm Height: 25mm
Product Label:
Wiring Instructions：

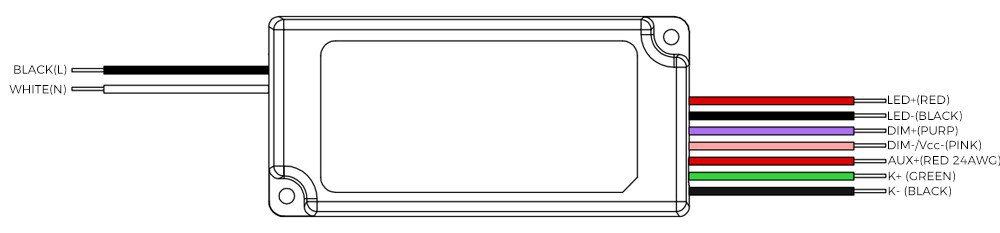

The two ends of the product are connected, one end is the AC input end, the other end is the DC output and dimming signal input end, LED+ and LED are respectively connected to the positive and negative poles of the LED light; the purple DIM+ is connected to 0-10V+, the pink DIM- is connected to 0-10V- ; Red AUX+ is connected to 12V control module +, VCC- is shared with pink DIM-.

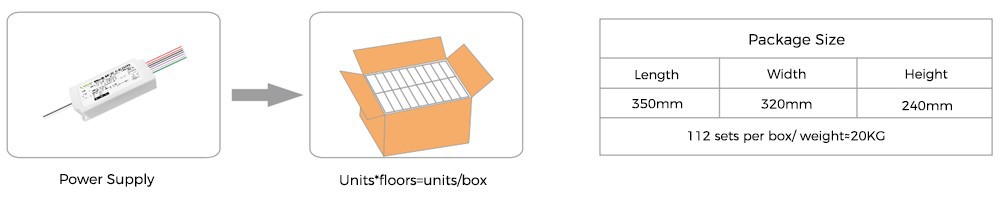

Product Packaging:
Hot Tags: versatile nfc-enabled led driver with dimming options, China versatile nfc-enabled led driver with dimming options manufacturers, suppliers, factory, Double DIP Power Adjustment Constant Current LED Driver, Slim Strip Dimmable Isolated Driver, Sensor Drivers for Linear Lights, five color temperature switch, 40W Sensor Driver, 1500mA
ES40D1C-421000AZ
|
Performance |
||
|
Model |
ES40D1C-420600AZ |
|
|
Input |
Efficiency |
88%@220Vac full load |
|
Voltage
|
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@120Vac/60Hz,≥10% full load |
|
|
≥ 0.9@277Vac/60Hz,≥50% full load |
||
|
≥ 0.9@347Vac/60Hz,≥80% full load |
||
|
THD(full load) |
<10%@120Vac full load |
|
|
AC Current(max) |
0.55A@120Vac full load |
|
|
Standby Power |
<1W
|
|
|
Inrush Current (cold engine start)Max |
120V 20A peak,500us duration (10% Ipeak) |
|
|
277V 25A peak,600us duration (10% Ipeak) |
||
|
347V 35A peak,800us duration (10% Ipeak) |
||
|
Leakage Current (max) |
＜0.15mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-42Vdc/1000mA/37W |
|
Current Ripple |
<5% |
|
|
Channel |
1 output channel |
|
|
Linear Regulation |
±5% |
|
|
No-load Output Voltage |
<50V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100mA |
|
|
Function |
Dimming Method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming Current |
<1mA@10V <2mA@0.7V |
|
|
Dimming Range |
1%-100% (standard) |
|
|
Adjust Power |
Can be dialed externally |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup,when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
||
|
Length |
84 mm |
|
|
Width |
40 mm |
|
|
Height |
25 mm |
|
|
Mounting Length |
72mm |
|
|
Weight (g) |
175g |
|
|
Environmental |
||
|
Safety Standard |
UL8750 ,Class2 |
|
|
EMC Emission |
Meets FCC Part 15 |
|
|
Operating Temperature |
-20°C to 50°C |
|
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%RH |
|
|
Case Temperature |
Tc=90℃ |
|
|

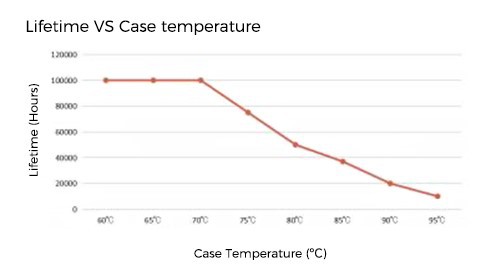

Warranty Tc |
80°C Max For 50k Hr Life |
|
|
Surge Protection |
L-N 1KV |
|
|
IP Rating |
IP20 |
|
|
Material |
Plastic shell |
|
|
Sensor Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
ES25D1C-42XXXXYZ |
25W |
120-277/120-347Vac |
24-42Vdc |
600mA |
0.9 |
Adjustable |
86% |
|
ES40D1C-42XXXXYZ |
37W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
86% |
|
ES60D1C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1500mA |
0.9 |
Adjustable |
88% |
Inspection
Successful Cases
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
Factory

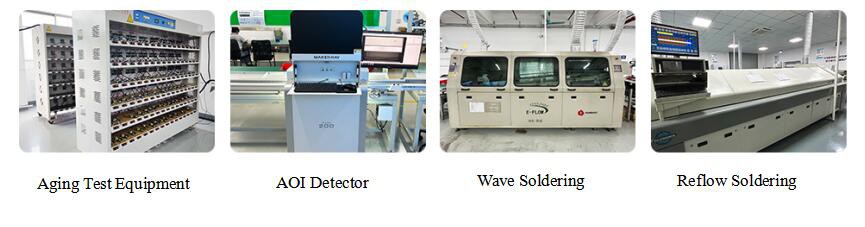

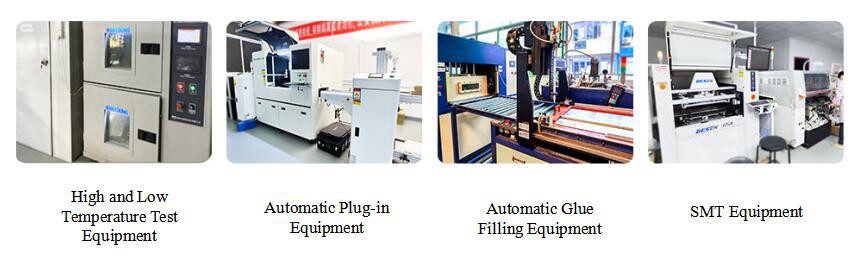

We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT Machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
