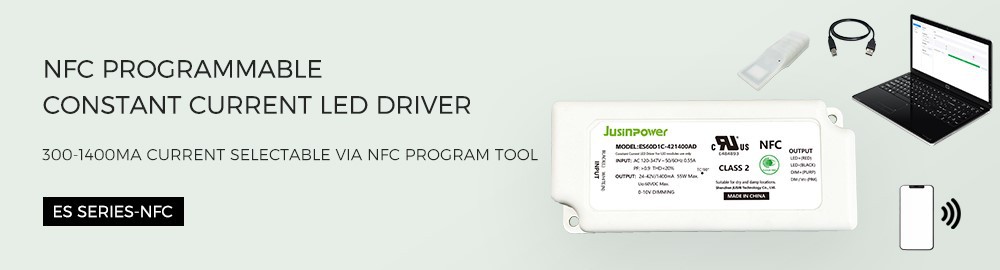

NFC programmable Constant Current LED Driver
This driver offers flexible programming options via an NFC app or tool, allowing users to adjust the output current between 300-1400mA. This feature ensures high current accuracy, which is crucial for precise applications. By enabling customization of output current, it helps reduce inventory complexity by accommodating various requirements with a single model.
Top Features and Benefits:
Input 120-277Vac
/120-347Vac
High PF, High efficiency reliability & flexibility
Dimmable LED driver. Max. output power 55W

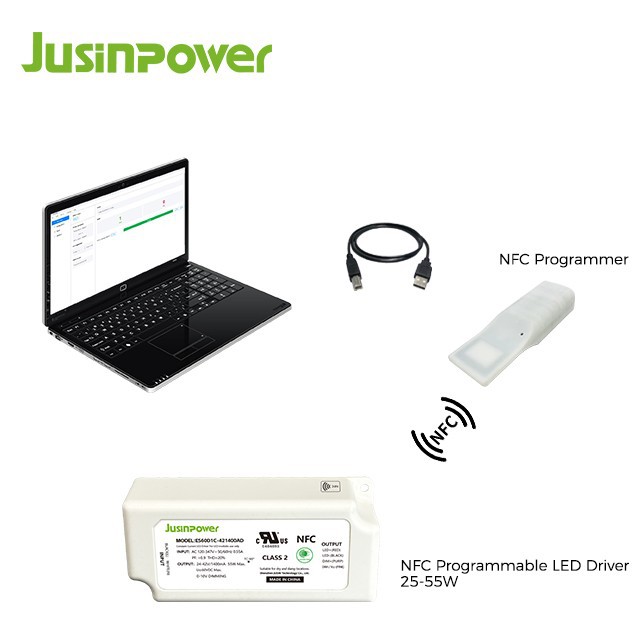

300-1400mA current selectable via NFC program tool.
The design of filling glue is adopted

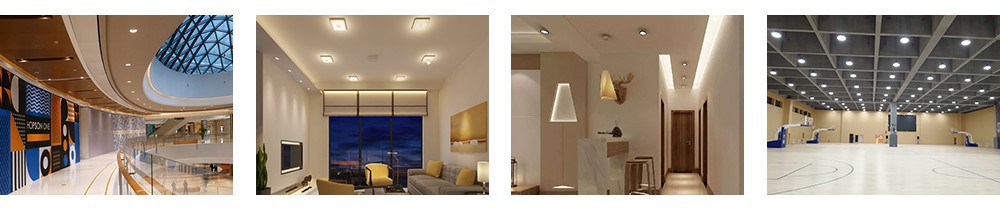

Application Scenario:
Residential and Retail Dimming Applications: LED drivers with dimming capabilities are used in both residential and retail settings to provide smooth and adjustable lighting.
Product Details:

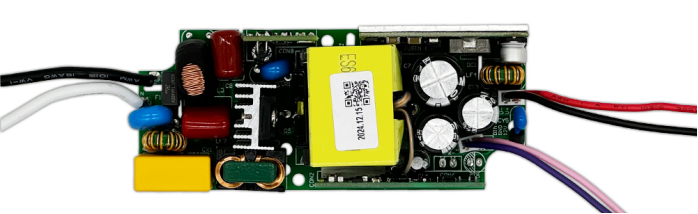

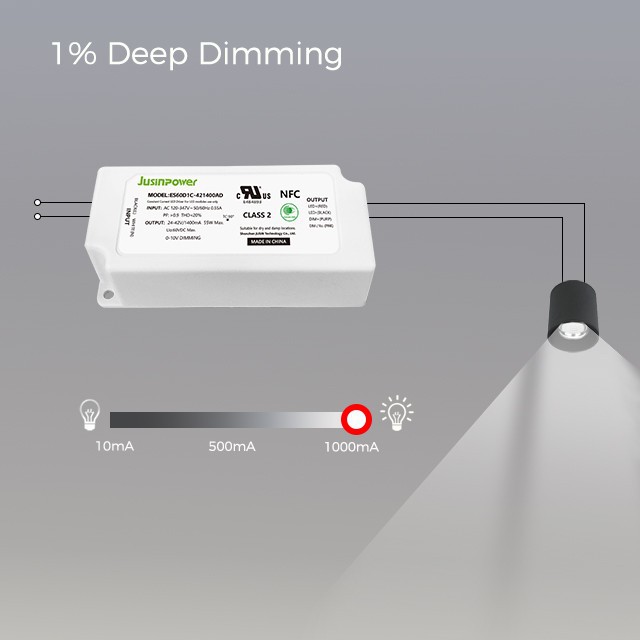

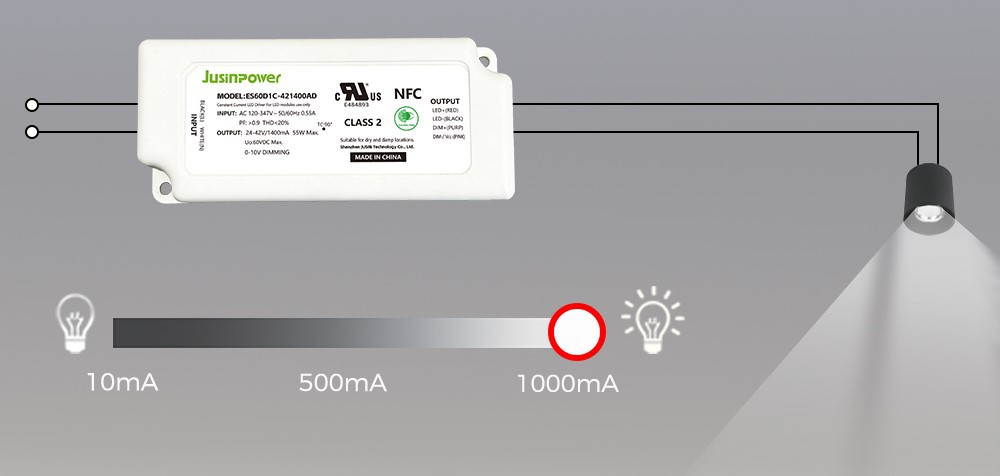

Supports 1% deep dimming, providing smooth brightness control.

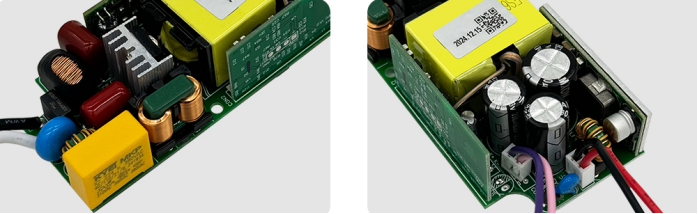

High efficiency design reduces energy consumption, improves system life and overall efficiency.

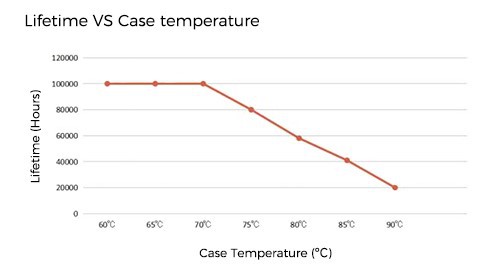

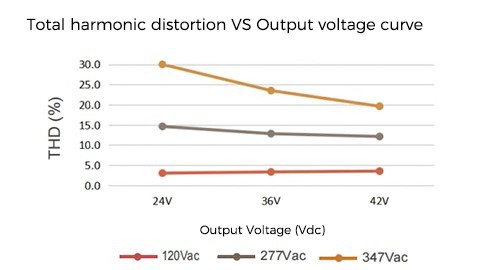

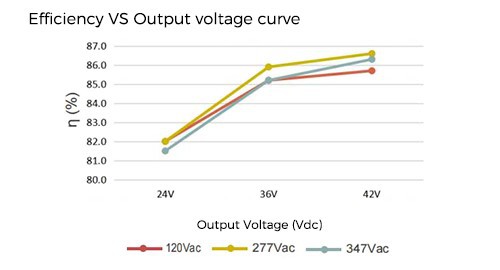

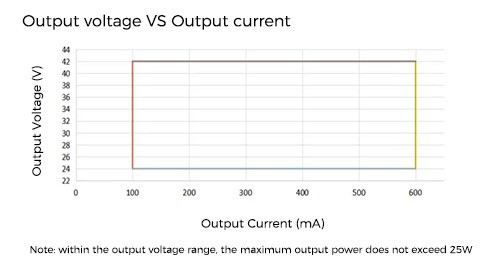

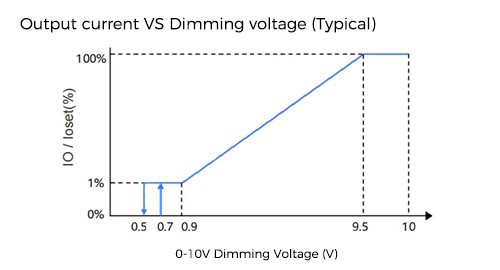

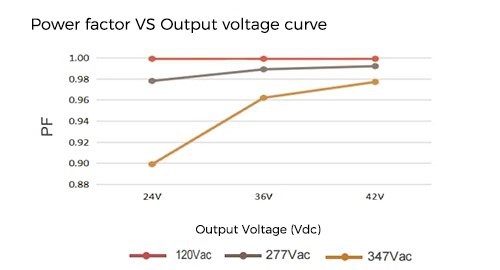

Electrical Curve Diagram:
Measured at Ta 25℃, output current 600mA

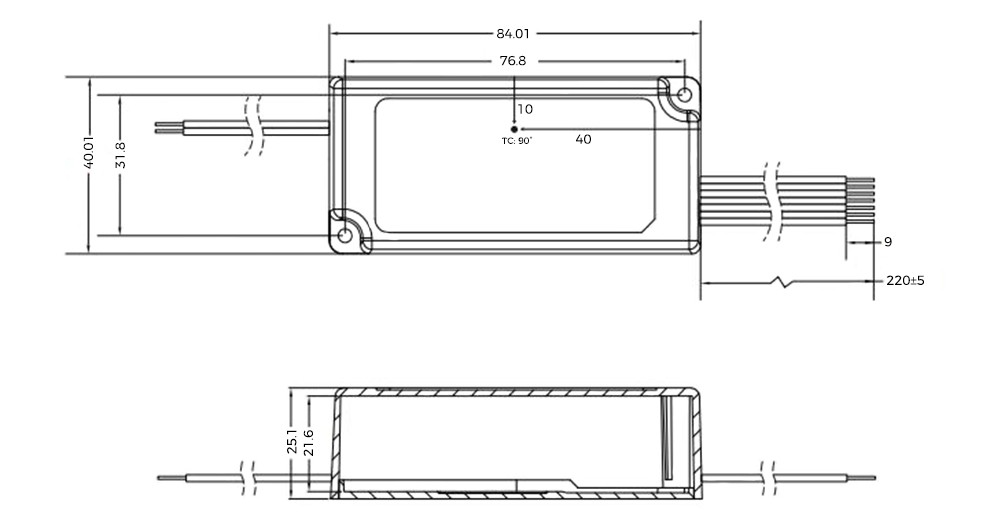

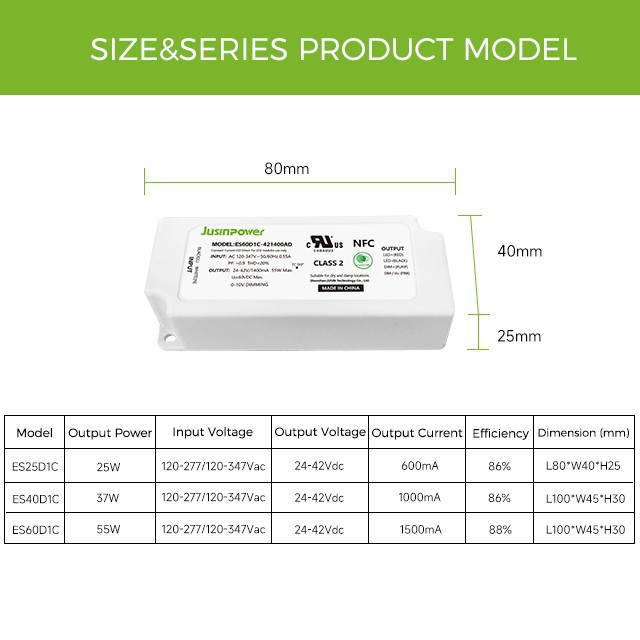

Dimension (mm):
Length: 80mm Width: 40mm Height: 25mm

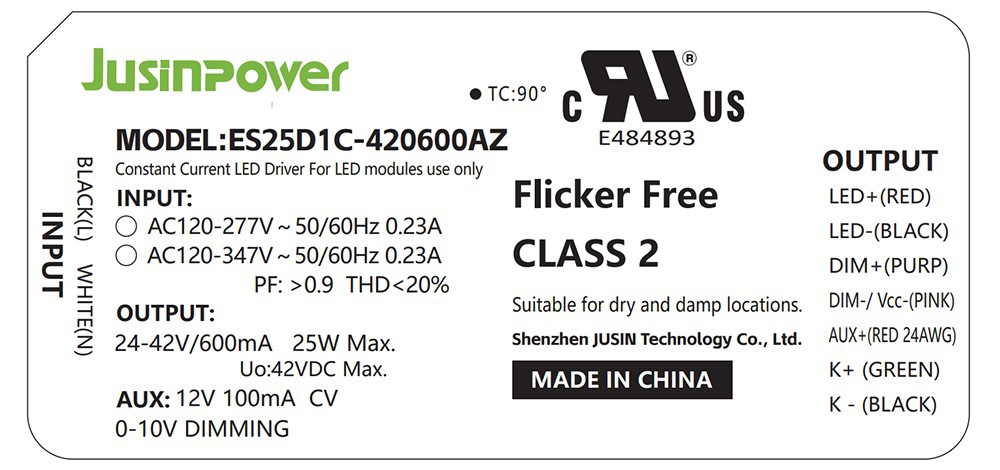

Product Label:
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.

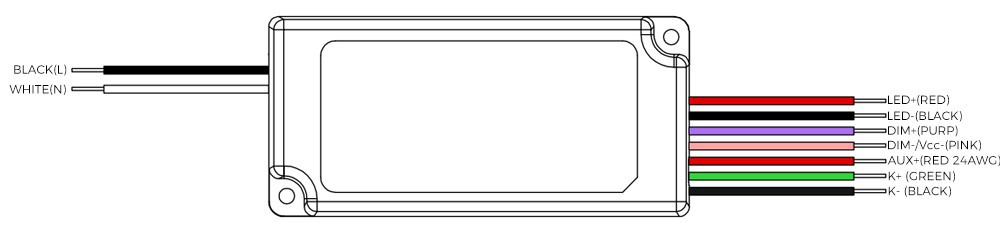

Wiring Instructions：
The two ends of the product are connected, one end is the AC input end, the other end is the DC output and dimming signal input end, LED+ and LEDare respectively connected to the positive and negative poles of the LED light; the purple DIM+ is connected to 0-10V+, the pink DIM- is connected to 0-10V- ; Red AUX+ is connected to 12V control module +, VCC- is shared with pink DIM-.

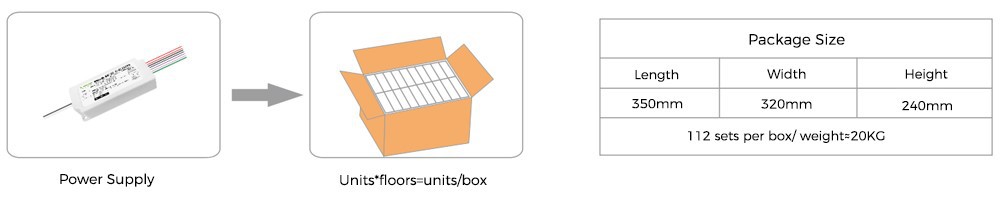

Product Packaging:
Hot Tags: nfc programmable constant current led driver, China nfc programmable constant current led driver manufacturers, suppliers, factory, led induction power supply, push tunable white, color temperature, 5 8G LED Sensor Driver, professional casambi, offline burning
ES25D1C-420600AZ
|
Performance |
||
|
Model |
ES25D1C-420600AZ |
|
|
Input |
Efficiency |
86%@220Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@120Vac/60Hz,≥10% full load |
|
|
≥ 0.9@277Vac/60Hz,≥50% full load |
||
|
≥ 0.9@347Vac/60Hz,≥70% full load |
||
|
THD(full load) |
<10%@120Vac full load |
|
|
AC Current(max) |
0.25A@120Vac full load |
|
|
Standby Power |
<1W
|
|
|
Inrush Current (cold engine start)Max |
120V 20A peak,500us duration (10% Ipeak) |
|
|
277V 25A peak,600us duration (10% Ipeak) |
||
|
347V 35A peak,800us duration (10% Ipeak) |
||
|
Leakage Current (max) |
＜0.15mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-42Vdc/600mA/25W |
|
Current Ripple |
<5% |
|
|
Channel |
1 output channel |
|
|
Linear Regulation |
±5% |
|
|
No-load Output Voltage |
<50V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100mA |
|
|
Function |
Dimming Method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming Current |
<1mA@10V <2mA@0.7V |
|
|
Dimming Range |
1%-100% (standard) |
|
|
Adjust Power |
Can be dialed externally |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup,when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
||
|
Length |
84 mm |
|
|
Width |
40 mm |
|
|
Height |
25 mm |
|
|
Mounting Length |
72mm |
|
|
Weight (g) |
175g |
|
|
Environmental |
||
|
Safety Standard |
UL8750 ,Class2 |
|
|
EMC Emission |
Meets FCC Part 15 |
|
|
Operating Temperature |
-20°C to 50°C |
|
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%RH |
|
|
Case Temperature |
Tc=90℃ |
|
|
Warranty Tc |
80°C Max For 50k Hr Life |
|
|
Surge Protection |
L-N 1KV |
|
|
IP Rating |
IP20 |
|
|
Material |
Plastic shell |
|
|
Sensor Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
ES25D1C-42XXXXYZ |
25W |
120-277/120-347Vac |
24-42Vdc |
600mA |
0.9 |
Adjustable |
86% |
|
ES40D1C-42XXXXYZ |
37W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
86% |
|
ES60D1C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1500mA |
0.9 |
Adjustable |
88% |

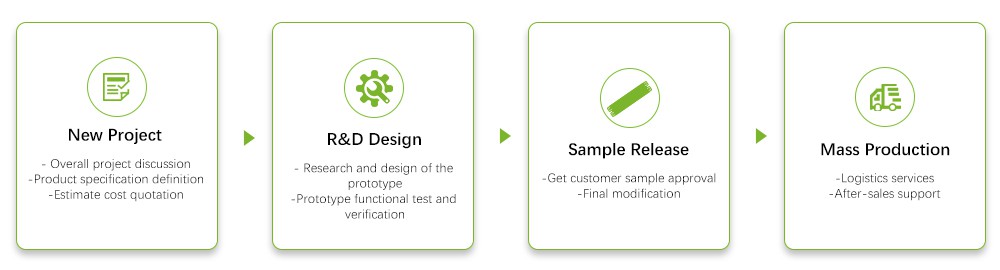

OEM/ODM
