Linear Dimming LED Driver

This driver is designed to meet global input voltage requirements of 100-277Vac and withstand high voltage surges of up to 380Vac. With its sleek and slender design, it is suitable for use in grid lamps, linear lights, and fluorescent tubes among others. This product comes with a 3-year warranty, assures customers of its quality and reliability.

Top Features and Benefits:


3 years warranty	Flicker free	0-10V dimming	Ultra small thin

1.0-10v dimmable design

2.Output short circuit protectio

3.High PF, low THD

4.Meet with UL,TUV,FCC

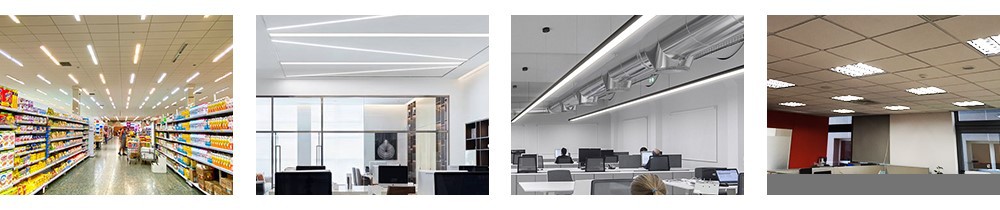

Application Scenario:

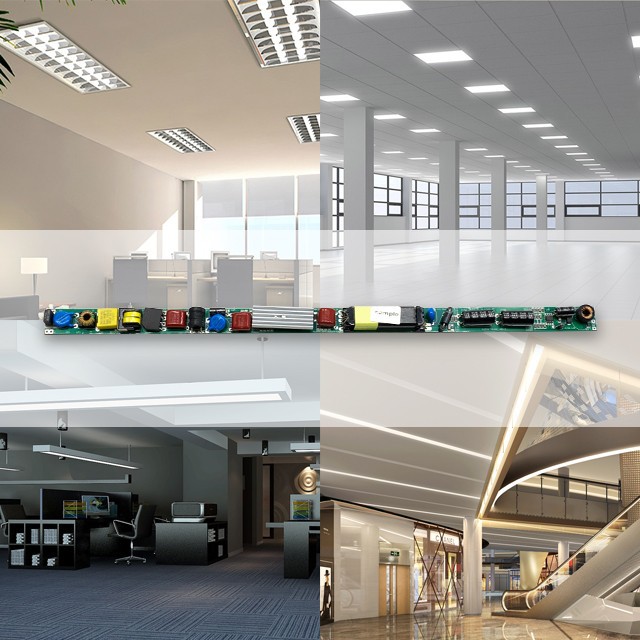

Our LED driver is a dependable option for your indoor lighting requirements, offering energy efficiency and extending the lifespan of your LED lights.

Product Details:

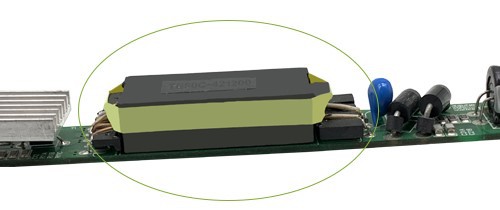

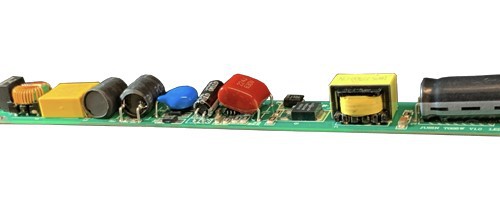

LED drivers with transformers are often more robust and durable compared to electronic drivers without transformers.

Properly designed horizontal components can help minimize glare by directing light downward or diffusing it evenly, creating a more comfortable and visually pleasing environment..

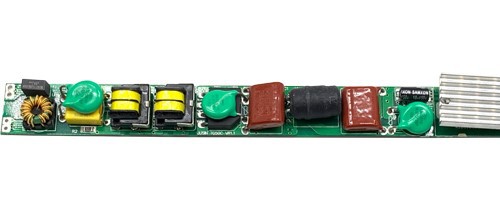

FR4 PCBs are easy to fabricate using standard PCB manufacturing processes, including drilling, etching, plating, and soldering, resulting in efficient and cost-effective production.

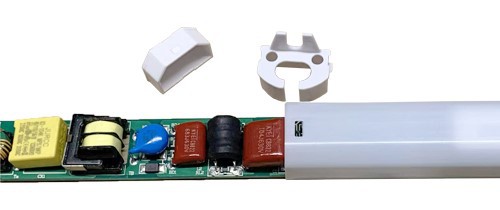

Plastic housing and end caps offer good impact resistance, protecting the internal components of the LED driver from damage caused by accidental bumps or knocks during handling or installation..

LED drivers with safety tubes offer a clean and professional appearance, as the tubes help organize and conceal input side wiring and components.

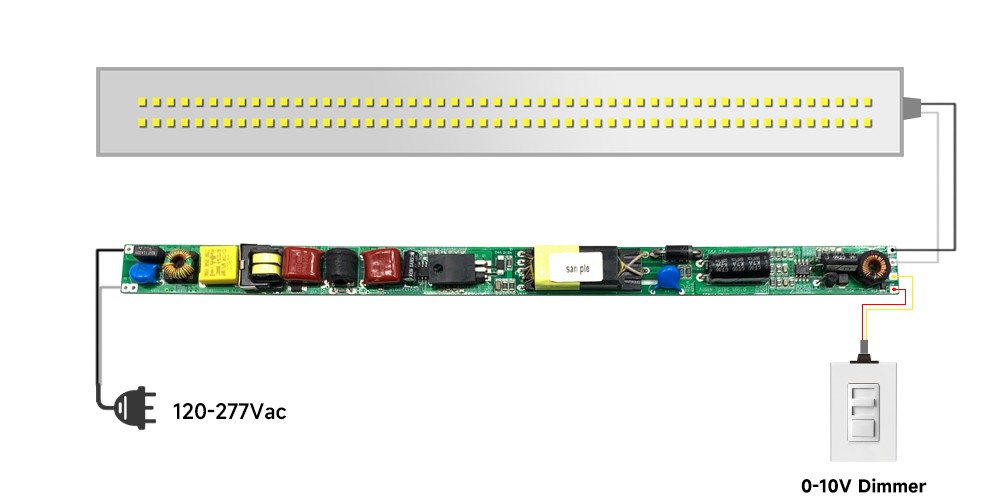

Wiring Instructions:

AC input terminal, this terminal is connected to the mains power(120-277Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

Product Packaging:

product-1000-270

Hot Tags: linear dimming led driver, China linear dimming led driver manufacturers, suppliers, factory, panel led driver, output current 2 5A, 6000K selectable, 40w dimmable led driver, DIP adjustment, up down light led driver

TG18C-TG50C

Performance
Model	TG18C- TG50C
Input Voltage	100-277 Vac
Input Current Max	0.6A-1.2A@230Vac Full load
Input Power Max	25-50W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	1200mA
Power Efficiency	87%@230Vac Input

Environmental
Safety standard	UL8750 ,Class2
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Surge protection	L-N 1KV , L/N-FG 2KV
Certificate	Meet CE /FCC/ UL certificate

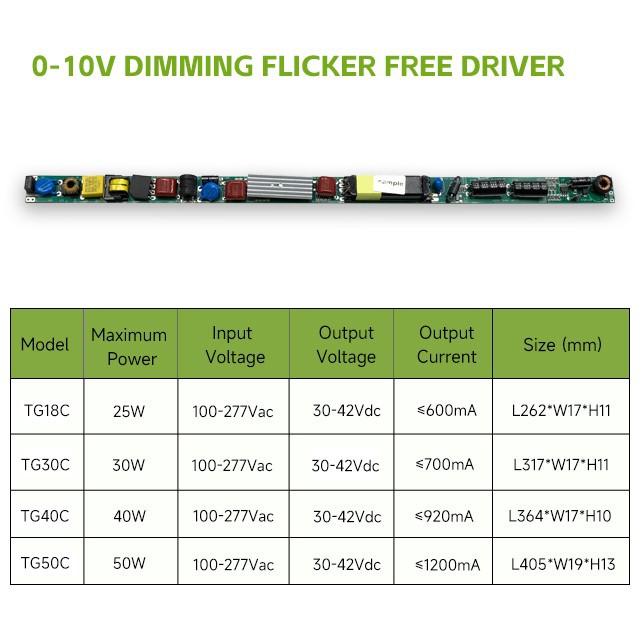

Series

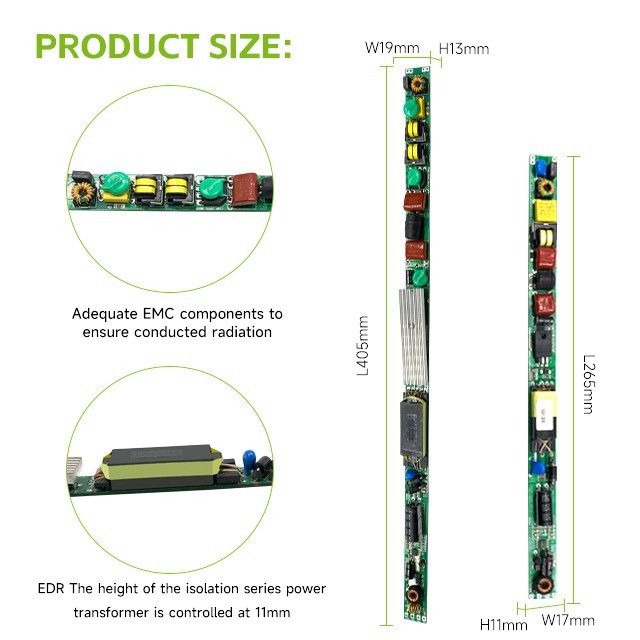

Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
TG18C	25W	100-277Vac	28-42V	≤600mA	0.87	0.92	L265W17H11	TUV,FCC,UL	Flicker free
TG30C	30W	100-277Vac	30-42V	≤700mA	0.87	0.92	L317W17H11	TUV,FCC,UL	Flicker free
TG40C	40W	100-277Vac	28-42V	≤920mA	0.87	0.92	L364W17H11	TUV,FCC,UL	Flicker free
TG50C	50W	100-277Vac	30-42V	≤1200mA	0.87	0.92	L405W19H13	TUV,FCC,UL	Flicker free

OEM/ODM

Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

product-1000-270

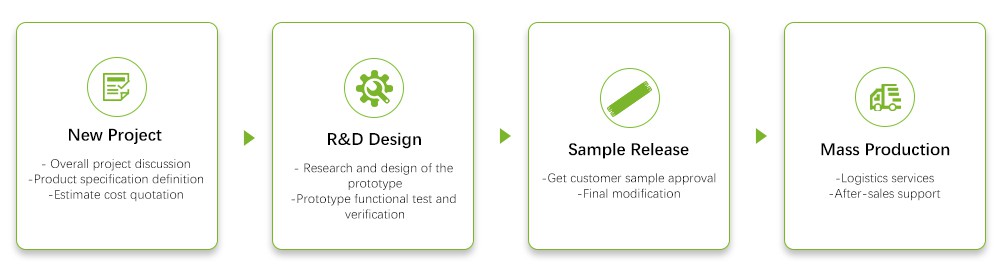

OEM/ODM Service flow

1.New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.

2.R&D Design: research and design of the prototype.Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.

3. Sample Release: Get customer sample approval-final modification

4. Mass Production: Logistics services and Provide after-sales service

Exhibition

Every year since 2016, we have been attending Guangzhou International Lighting Exhibition and Hong Kong Exhibition in Autumn. During the exhibition, we met customers from all over the country who came to visit and learn about our products. After the customers became familiar with our products, our products were unanimously praised by customers and returned their orders.

product-1000-350

Certificate

Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
