DC-DC Step Down Converter Module LED Driver
With its high-efficiency performance, this driver minimizes heat generation, contributing to improved reliability and extended lifespan. The precise regulation of voltage and current reduces wear on the components, ensuring that the lighting system operates efficiently over time.
Long-lasting and low maintenance.
Ensures smooth operation without affecting nearby equipment.
Supports industrial applications that require steady lighting.
Reduces the need for voltage regulation equipment.

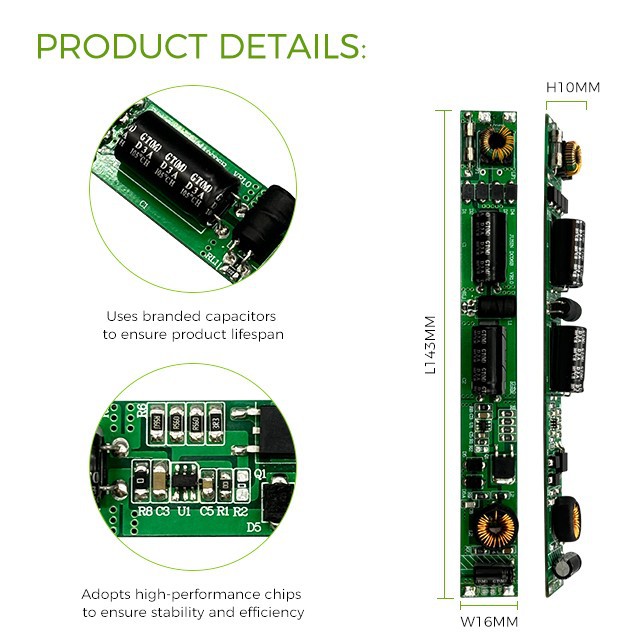

Product Details:
|
Feature |
DC to DC LED Tube Driver |
AC to DC LED Tube Driver |
|
Input power type |
Direct current (DC) |
Alternating current (AC) |
|
Conversion process |
Directly convert DC input to voltage and current suitable for LEDs |
First convert AC to DC (AC to DC), then adjust to voltage and current suitable for LEDs |
|
Efficiency |
Usually higher, can reach more than 90%, reducing conversion losses |
Overall efficiency is low, AC to DC conversion has losses |
|
Size |
Small |
Slightly bigger than DC |
|
Applicable |

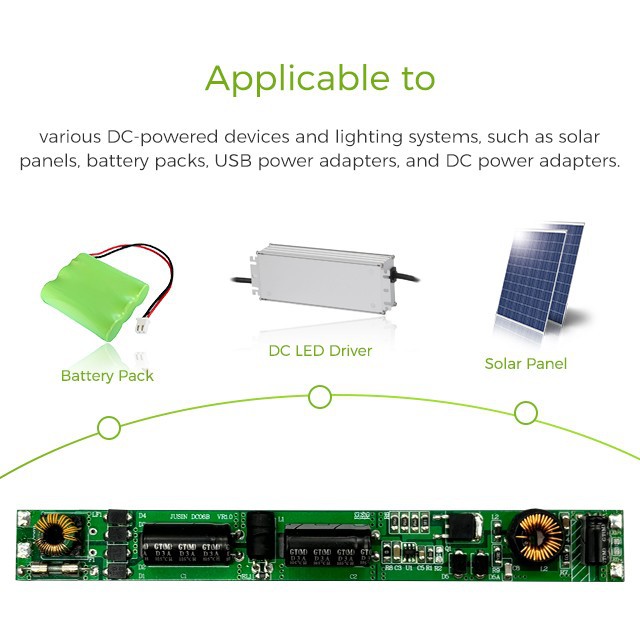

Applicable to DC power systems, such as batteries |
Applicable to AC power lighting systems, commonly used in home and commercial lighting |
|
EMI |
Generally good, reduces electromagnetic interference |
May generate higher electromagnetic interference, requiring additional electromagnetic shielding measures |
Since it does not require an AC to DC conversion module, the design may be more compact, smaller in size and weight, and suitable for space-constrained applications.

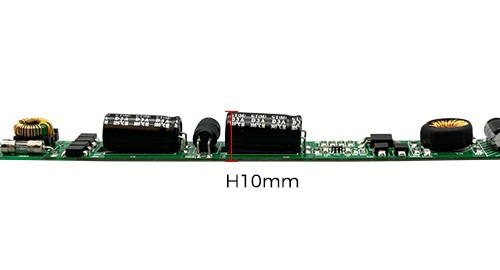

The product boasts slender,with a height measuring a mere 10mm.

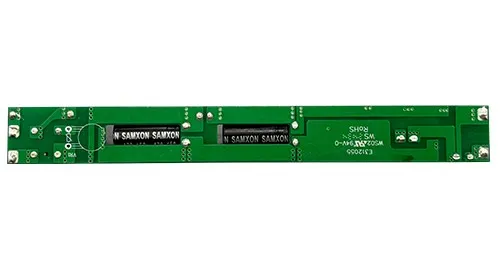

The FR4 material used in PCB has excellent resistance to high temperatures, consistent and reliable electrical insulation properties, and impressive mechanical durability and resilience.

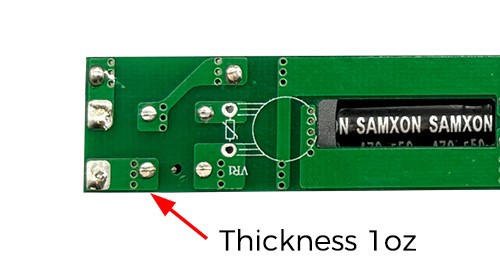

The thickness of copper foil is approximately 1oz.

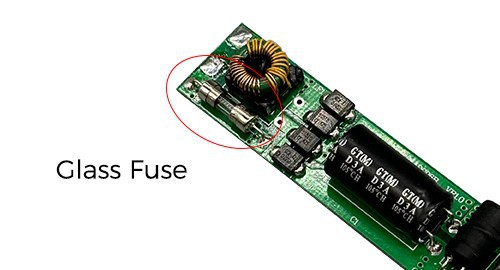

Capable of withstanding high current for a short period of time and quickly disconnecting the circuit to protect the driver from overload or momentary short circuit.

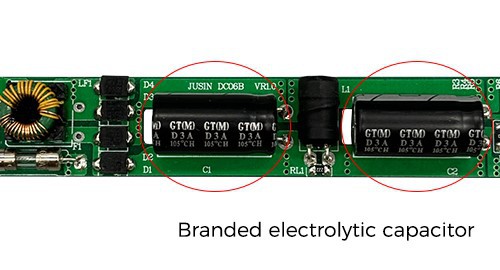

Maximize the lifespan of your driver with high-capacity capacitors from SAMXON Electrolytic Capacitors, boasting a remarkable longevity.

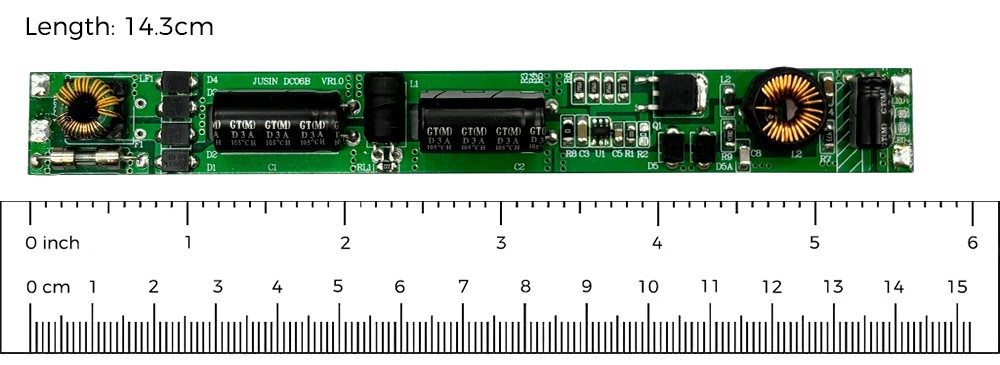

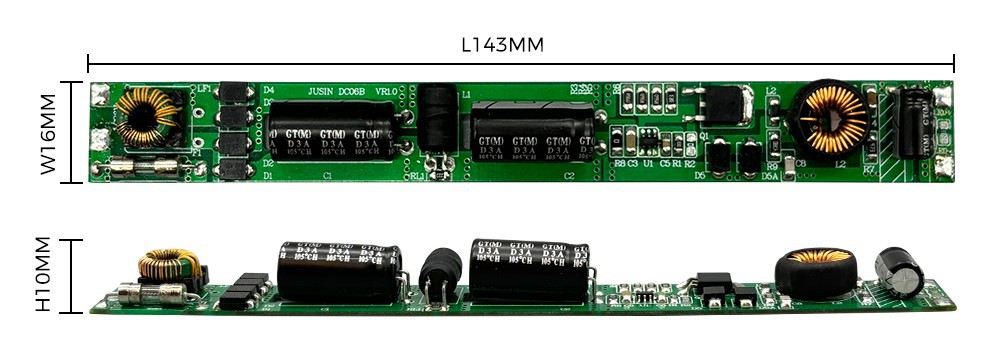

Dimension (mm)
Length 143 Width 16 Height 10

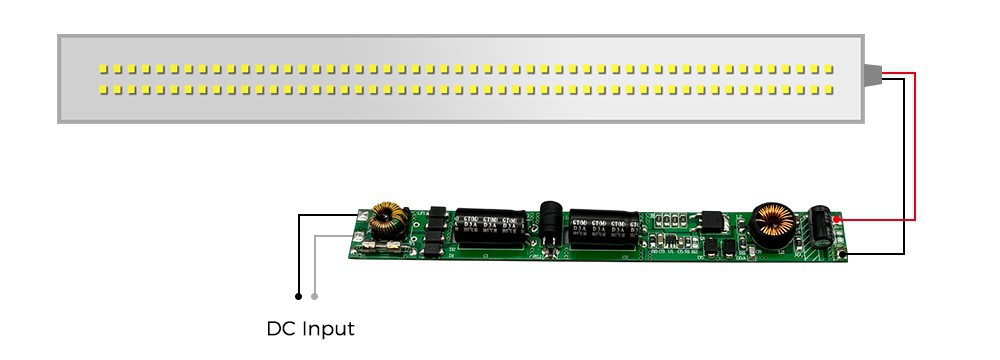

Wiring Diagram：
Input terminal, connected to DC power supply, input voltage 36V. Output terminal connected to LED lights
Hot Tags: dc-dc step down converter module led driver, China dc-dc step down converter module led driver manufacturers, suppliers, factory, led driver 5 line cct, 75W power source, LED Driver 2 Line Cct, 0 10v dimmer, slim strip driver, Wireless Dimmable LED Driver

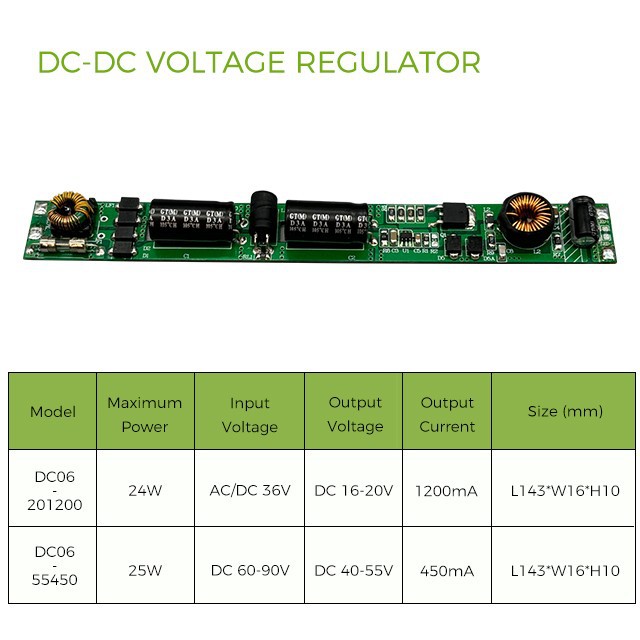

DC06
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Size(mm) |
||
|
DC06-201200 |
24W |
AC/DC180-265V |
DC16-20V |
1200mA |
L143*W16*H10 |
||
|
DC06-55450 |
25W |
DC60-90V |
DC40-55V |
450mA |
L143*W16*H10 |
||
|
Size |
|||||||
|
Length |
143 mm |
||||||
|
Width |
16mm |
||||||
|
Height |
10mm |
||||||
|
Weight (g) |
20g |
||||||
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

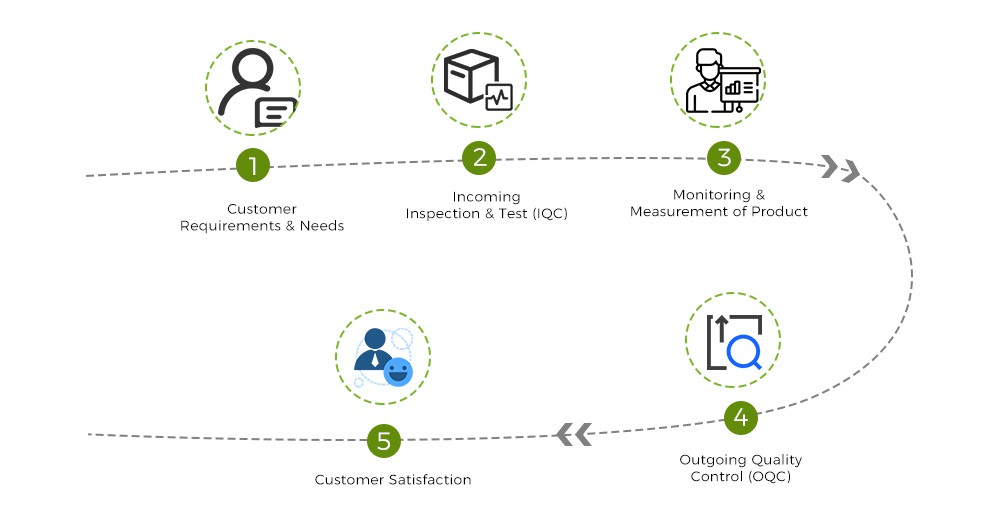

QC Process Flow Chart
Company Profile
Shenzhen Jusin Technology Co., Ltd., established in 2012, is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.In 2016,batch production of Emergency driver, the production workshop expanded from 1000 square meters to 2000 square meters.The Foshan branch will be established in 2022, and the factory will be purchased for production. The Foshan factory is officially put into production, with an estimated annual output of 3 million power supplies.With excellent engineering experience and high product quality as our background, Product performance in line with industry standards. To provide you with efficient, high-performance LED drive products and lighting control solutions.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
