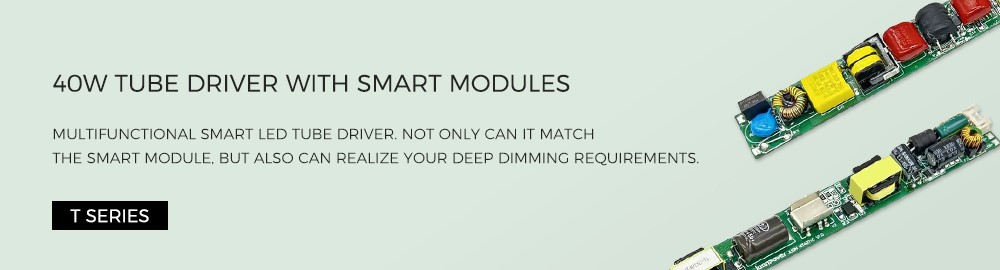

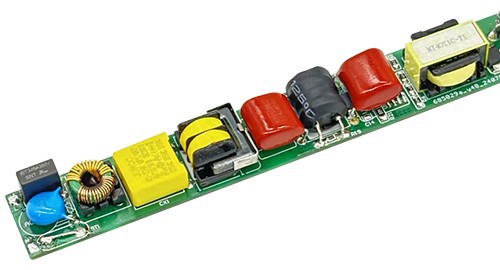

40W Tube Driver with Smart Modules
This is a high-performance LED tube driver that is compatible with a variety of smart modules. Whether it is a Bluetooth module or a sensor module, it can be easily connected to realize remote control, timer switch, smart sensing and other functions. By cooperating with smartphones or other devices, users can manage lighting anytime and anywhere, improving the convenience and comfort of life. It has strong stability and high efficiency, supports seamless connection with a variety of smart modules, and facilitates the realization of richer lighting scenes and functions. It can better meet the intelligent needs of modern home and commercial environments.
Top Features and Benefits:
|
|
|
|
|
|
PWM dimming |
5V auxiliary power supply |
Over temperature protection |
Over voltage protection |
1.Multifunctional smart led tube driver. Not only can it match the smart module, but also can realize your deep dimming requirements.

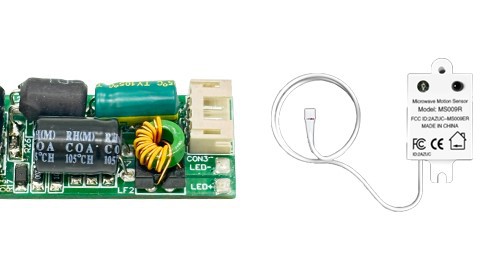

2.5V auxiliary power supply.Can be connected to samrt sensor modules, bluetooth module,etc.
3.40W High Voltage Input:200-240Vac.Better adaptability to unstable grid environments and more stable power supply

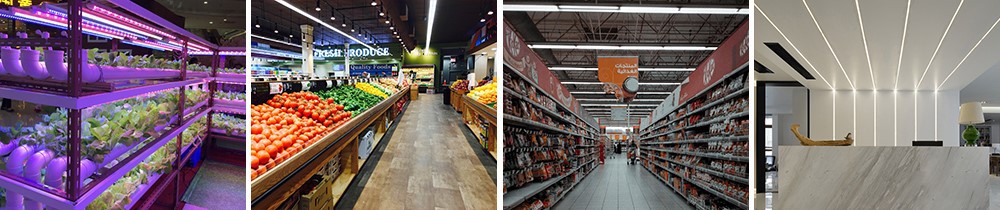

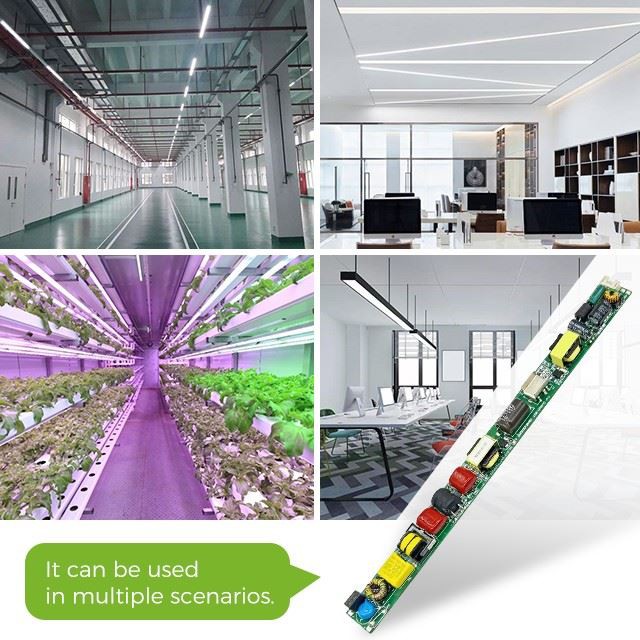

Application Scenario:
Retail Stores: Adjustable LED drivers enable dynamic lighting for displays, enhancing product presentation and customer experience.

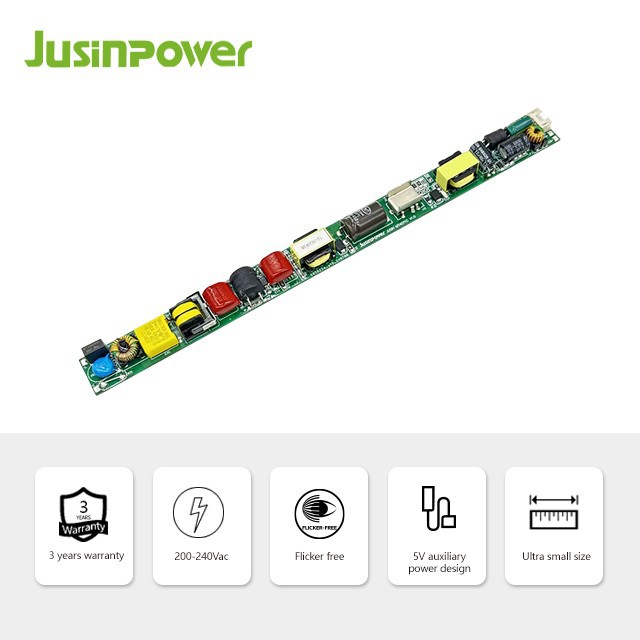

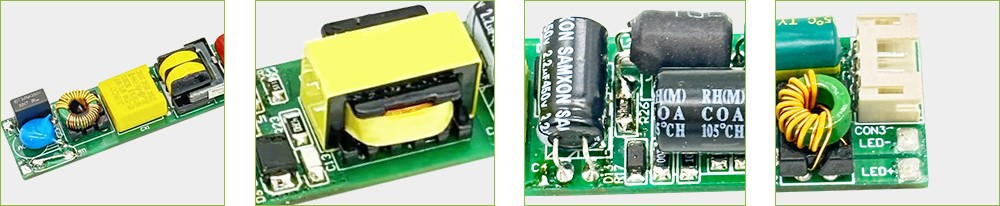

Product Details:

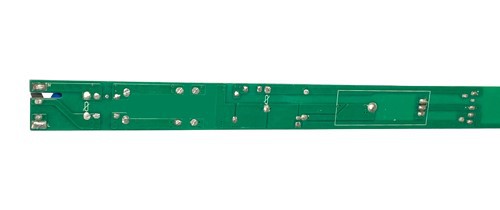

In addition to flame retardancy and excellent mechanical strength, FR4 also has insulation and other properties, such as high temperature resistance
Enhanced Signal Integrity: By controlling EMI, EMC parts ensure that the input signals remain clean and stable, leading to more reliable operation of the LED driver and connected lighting systems.

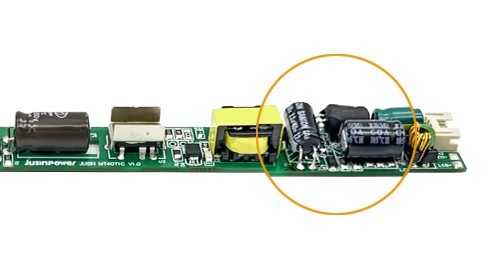

Filtering: Capacitors filter out noise and ripples from the power supply, ensuring a cleaner and more stable voltage for the LED driver, which enhances the performance and longevity of the LEDs.

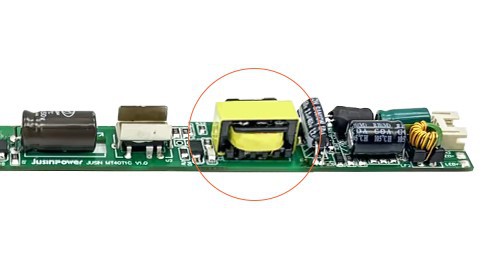

Transformers provide galvanic isolation between the input and output circuits, enhancing safety by preventing electrical shocks and protecting the LEDs and driver circuitry from high voltage surges.

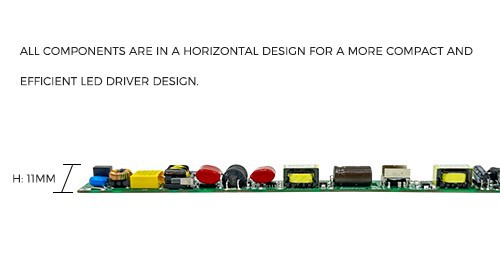

Horizontal components can be laid out in a way that optimizes the use of available space, leading to more compact and efficient LED driver designs.
Motion or occupancy sensors can turn off or dim the lights when a space is unoccupied, significantly lowering energy usage.

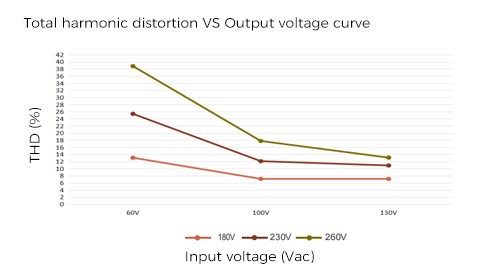

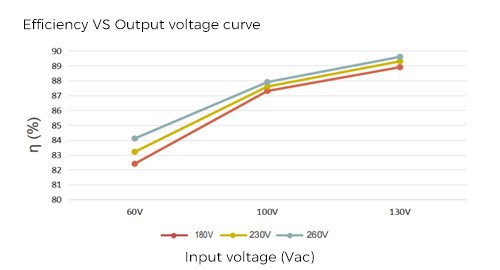

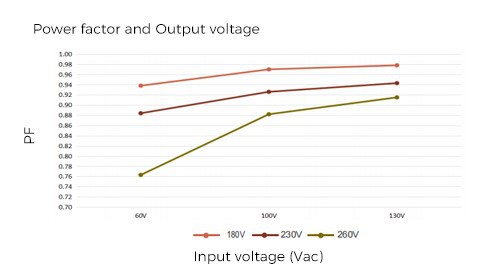

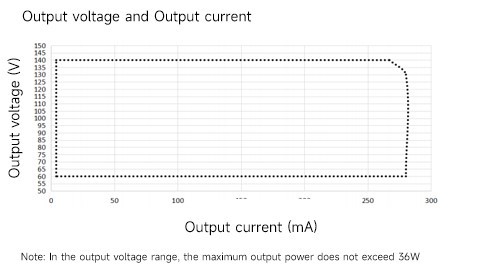

Electrical Chart:
Test at TA25℃ and output current 280mA

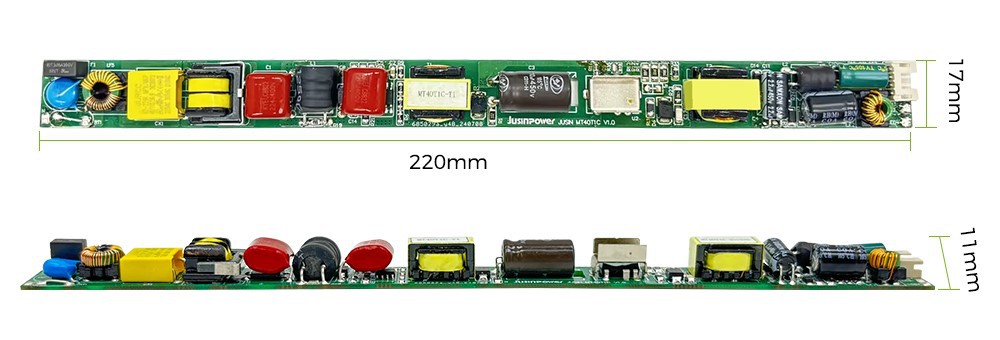

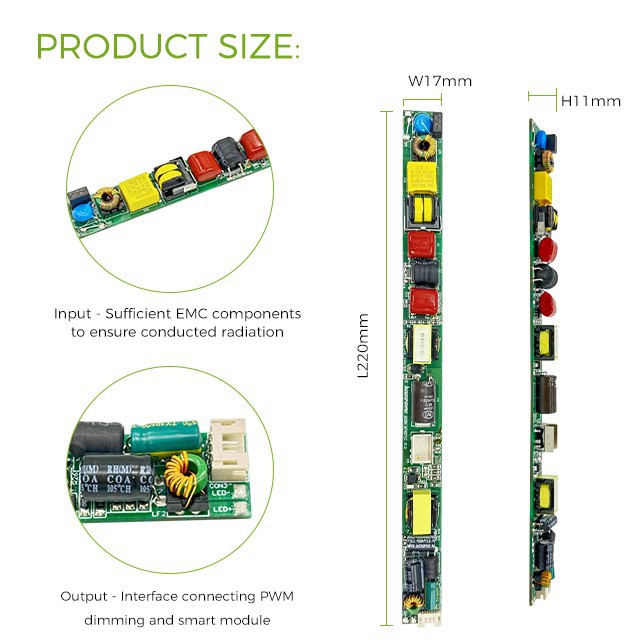

Dimension(mm):
Length:220mm Width: 17mm Height:11mm

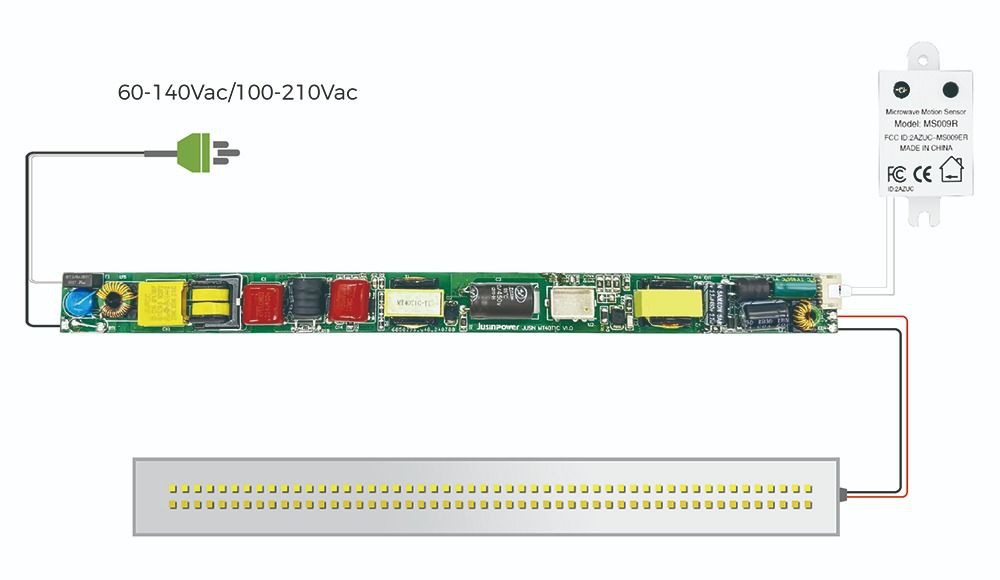

Wiring instructions:
The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.

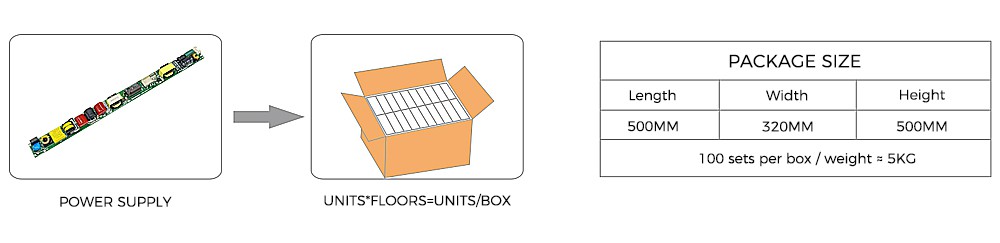

Product Packaging:
Hot Tags: 40w tube driver with smart modules, China 40w tube driver with smart modules manufacturers, suppliers, factory, non isolated led driver, 75W Sensor Driver, 1 10v Dimming Driver, 0 10V Dimming LED Driver, 500ma sensor led driver, 347v 0 10v Dimming Driver
MT40T1C
|
Performance |
||
|
Model |
MT40T1C-1400300 |
|
|
Input |
Voltage |
200-240Vac |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
89%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD(Full load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.26A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A peak@180V |
|
|
28A peak@230V |
||
|
30A peak@260V |
||
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc) /Current (mA) Power (W) |
60-140Vdc/280mA 36W |
|
Ripple Voltage |
<5% |
|
|
Channel |
/ |
|
|
Line regulation |
±5% |
|
|
No-Load Output Voltage |
180V |
|
|
Start Time |
<0.5S@260V ＜1S@180V |
|
|
Auxiliary Voltage |
5V |
|
|
Function |

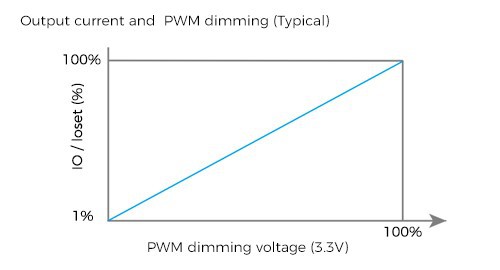

Dimming method |
3.3V PWM Dimming |
|
Dimming current |
<2mA@1% <280mA@100% |
|
|
Dimming range |
1%-100%(standard) |
|
|
10%-100% (Optional ) |
||
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
220 mm |
|
Width |
17mm |
|
Height |
11 mm |
|
Weight (g) |
≈45g |
|
Environmental |
|
|
Safety Standard |
CE ,Class2 |
|
EMC |
Meet EN IEC 55015:2019/A11:2020 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

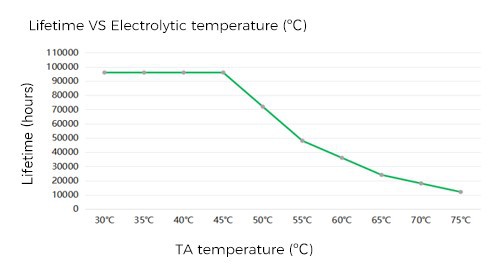

Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|

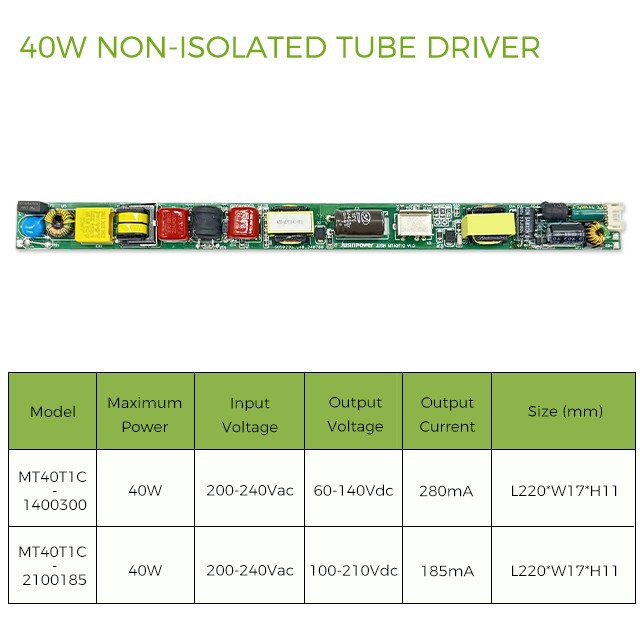

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
|
MT40T1C-1400300 |
36W |
200-240Vac |
60-140Vdc |
280mA |
0.9 |
89% |
L220*W17*H11 |
