Affordable LED Independent Emergency Devices for Commercial Projects

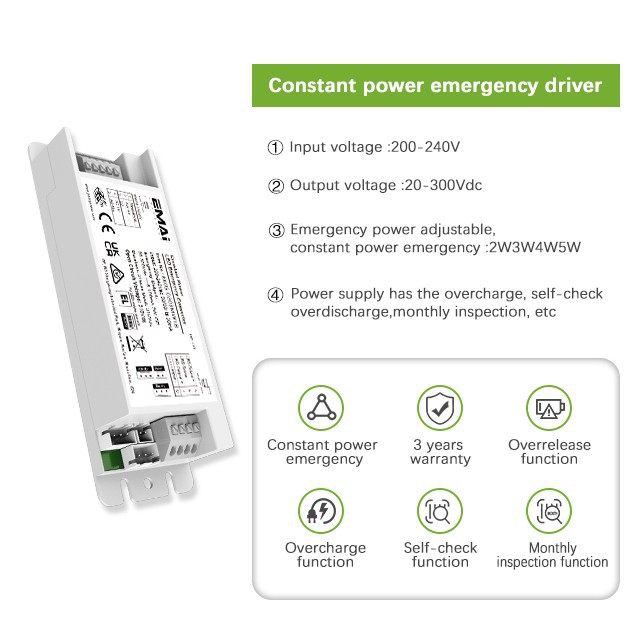

The EMAI EK05 emergency driver delivers true constant power output (2W/3W/4W/5W options) to maintain consistent lighting levels during emergencies when it matters most. With a wide 20–300VDC output range, it automatically adjusts to match diverse LED loads, making it ideal for retrofitting or new builds across Europe. Certified to ENEC, CE, CB, UKCA, and C-tick, it complies with EN 60598-2-22 and other regional standards. Built-in monthly and annual self-diagnostic tests ensure continuous readiness, while lithium technology enables a compact footprint. In case of fault (e.g., over-discharge), charging halts automatically; once resolved, AC reactivates seamlessly. Designed for dry indoor use only. Backed by a 3-year warranty.
Top Features and Benefits:
200-240Vac
Constant power emergency
Self-check function
ENEC certification
LiFePO4 battery
1.ENEC certified-stricter than CE, accepted in 20+ European countries.
2.Constant-power output (2W–5W) ensures stable brightness during emergencies.
3.Built-in NTC stops charging outside 0–60°C for safer LiFePO₄ operation.
4.Auto monthly & annual self-tests meet EN compliance without manual effort.
5.Also certified CB, UKCA, CE, and C-tick for global market access.

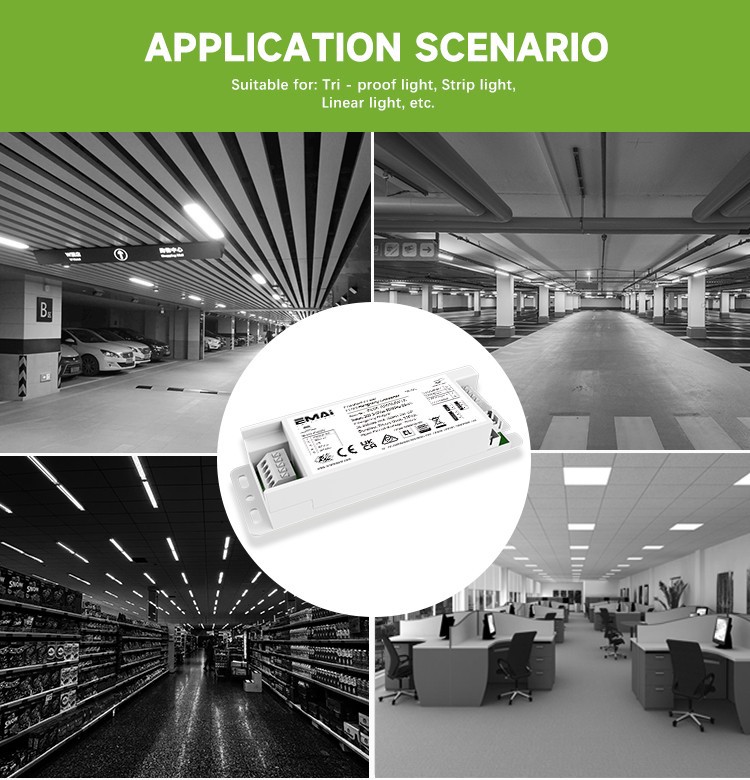

Application Scenario

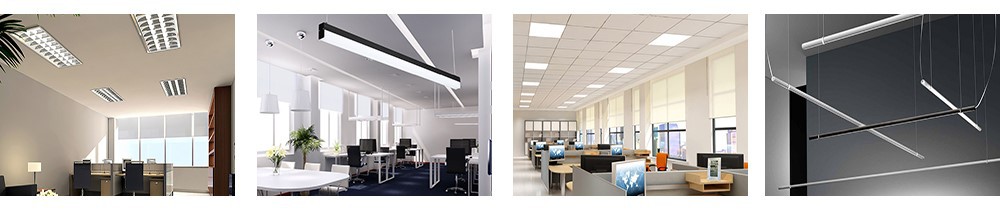

Commercial Buildings: Provides essential lighting in offices, retail spaces, and other commercial settings to ensure safety and operational continuity during power failures.
Product Advantages
1. ENEC Certified for Trusted Access Across Europe
The EMAI EK05 emergency LED driver is ENEC certified-a rigorous, third-party European safety mark far more trusted than basic CE. Recognized in over 20 EU countries, ENEC certification accelerates approval in demanding markets like Germany, France, and the Nordics. Combined with CB, CE, UKCA, and C-tick, the EK05 offers seamless compliance across Europe, the UK, Australia, and beyond-making it a truly global-ready solution for emergency lighting.
2.Safety-First Energy Storage
Engineered for reliability, this LiFePO₄ emergency power battery integrates an NTC temperature sensor to monitor real-time thermal conditions within its safe operating range of 0–60 °C. Unlike conventional lithium-ion chemistries, LiFePO₄ offers exceptional thermal and chemical stability, drastically reducing risks of fire or explosion. Its compliance with Regulation (EU) 2023/1542-verified under reference 2IFpR19/66-ensures adherence to stringent EU safety, sustainability, and labeling standards. Ideal for critical backup systems where safety and regulatory trust are non-negotiable.
Battery Parameters
Different battery capacities correspond to different emergency power outputs and emergency durations.
A larger battery capacity enables higher emergency power and longer emergency operating time, which can be flexibly configured according to project requirements.
|
Single |
Side by side |
Column |
Emergency power (W) |
2W |
3W |
4W |
5W |
||||||
|
Emergency Duration (H) |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
|||||
|
Battery type |
Structure |
Cell |
Size(L*W*H) |
Model |
|
|
|
|
|
|
|
|
|
|
26650 3.2V 4000mAH |
Single with fixed plate |
1*1 |
100*28*29 |
1140-02 |
★ |
★ |
★ |
★ |
|||||
|
26650 6.4V 4000mAH |
Side-by-side with fixed plates |
2*1 |
100*53*29 |
2140-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*28*29 |
2140-03 |
★ |
★ |
||||||||
|
18650 6.4V 1600mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2116-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2116-04 |
★ |
★ |
||||||||
|
18650 6.4V 2000mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2120-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2120-03 |
★ |
★ |
||||||||
Figure 1: 26650 Single 3.2V 4000mAH
Figure 2: 26650 Side by side 6.4V 4000mAH
Figure 3: 26650 Column 6.4V 4000mAH
Figure 4: 18650 Side by side 6.4V 1600mAH
Figure5: 18650 Column 6.4V 2000mAH
Battery charging and discharging time
|
Model number |
6.4V/1600mAH |
6.4V/2000mAH |
6.4V/4000mAH |
3.2V/4000mAH |
|||||||
|
Emergency power |
2W |
4W |
3W |
5W |
4W |
5W |
2W |
3W |
4W |
5W |
|
|
Duration |
3H |
1.5H |
3H |
1.5H |
3H |
4H |
3H |
3H |
1.5H |
1.5H |
|
|
Battery charge time |
Initial charge |
24H |
|||||||||
|
Trickle charge |
Continuous and uninterrupted charging |
||||||||||
|
Charging current |
Initial charge |
100-250mA |
100-250mA |
||||||||
|
Trickle charge |
100-250mA/0mA |
100-250mA/0mA |
|||||||||
|
Discharge current |
400-1000mA |
800-2000mA |
|||||||||
|
Charging protection voltage |
7.3+/-0.5Vdc |
3.6+/-0.5Vdc |
|||||||||
|
End of discharge voltage |
5.5+/-0.2Vdc |
2.7+/-0.2Vdc |
|||||||||
|
Discharge protection voltage |
4.2Vdc |
2.1Vdc |
|||||||||
Emergency Function
This is a maintenance-type emergency device. When the main power is connected, the green charging indicator light should illuminate, indicating that the battery has been correctly activated. The light will remain on. When the power is interrupted, the device will enter emergency mode and the indicator light will also illuminate. Testing and inspection must comply with local operating regulations.
Self-check function:
1. Green LED status light on: Normal charging mode, 200 - 240 volt power connected.
2. Monthly test, test duration 15 seconds.
3. 6-month test, test duration 3 hours.
4. Self-check tests are subject to EN62034 regulations.
LED indicator functions:
Off: Normal state, waiting for the next test.
Slow flash 1: 2 seconds on/2 seconds off: Self-check test in progress.
Slow flash 2: 4 seconds on/1 second off: Most recent self-check test completed and passed (stops after 5 days).
Fast flash: 0.5 seconds on/0.5 seconds off: Fault, replace battery or retest the device.
|
|
Colour |
The indicator light shows |
Status |
Comment |
|
|
Green |
Permanent |
Normal charging mode |
220-240Vac Supply connected |
|
|
Green |
Slow flash |
charging |
220-240Vac Supply connected |
|
|
Yellow |
Slow Flash 1: |
Performing self-test |
1-Month test,Test duration 15s |
|
|
Yellow/ Green |
Slow Flash 2: |
Self-test recently performed and passed |
Stop after 5 days |
|
|
Yellow/ Green |
Fast Flash 1: |
1 or 6 Month test failure |
Low Battery test automatically. |
|
|
Red |
Fast Flash 2: |
Battery failure |
Battery failed the duration test or function test / No battery |
|
|
Red |
Permanent |
LED Breakdown |
220-240Vac Supply connected |
|
|
No |
Green off |
Emergency mode |
Battery operation (DC mode) |
Dimension
Wiring Diagram
Product Packaging
Hot Tags: affordable led independent emergency devices for commercial projects, China affordable led independent emergency devices for commercial projects manufacturers, suppliers, factory, emergency led driver, emergency port led driver, emergency tunnel led driver, led driver for emergency bridge lights, led driver for emergency hangar lights, led driver for emergency runway lights
Product Specifications
Input voltage ..............................................................................(Universal) 200-240 VAC, 50/60Hz
Input current(300V).........................................................................................................0.07A (max)
Output voltage .................................................................................................................20-300VDC
Output current ..................................................................................................Automatic adjustment
Output power........................................................................................................................5W(max)
The neutral current of the highest AC drive unit .....................................................................1Amps
Power factor ...................................................................................................................................0.5
Surge ....................................................................................................................................L-N 1KV
Emergency time ..........................................................................................................90/180 minutes
Operating temperature ......................................................................................................0° - 50° C
Total Harmonic Distortion .........................................................................< 10% (@ Fully charged)
EMI ................................................................................Compliant with the FCC commercial scope
Emergency mode protection ...............................................................Battery overvoltage protection
Battery under-voltage protection
Battery hot-swapping under normal mode protection
Battery hot-swapping under emergency mode protection
Output open-circuit protection
Output short-circuit protection
Battery .....................................................................................LiFePO4 battery with NTC Detection
Battery charging current .................................................................................................250mA(Max)
Battery charging time .............................................................................................................24hours

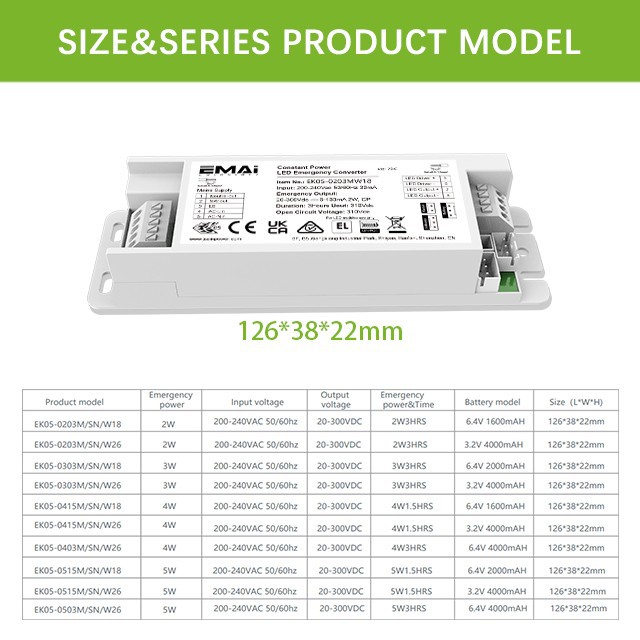

Product Series
|
Model Example |
Emergency Power |
Backup Time |
Typical Battery Configuration |
Test Mode |
Output Voltage Range |
|
EK05-0215M/W18 |
2 W |
1.5 h |
2×18650 (1600–2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203M/W18 |
2 W |
3 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203S/W26 |
2 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0315M/W18 |
3 W |
1.5 h |
2×18650 (1600 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0303S/W26 |
3 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0415M/W18 |
4 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0403S/W26 |
4 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0515M/W18 |
5 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0503S/W26 |
5 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
Note: Besides the above specifications, other parameters can be customized. Please contact the relevant sales for further details.
