LED Driver For Engineering Projects | MNS Series 50W–400W
JS-MNS Series – High-Performance 24V Constant Voltage LED Power Supply
The JS-MNS Series is a high-quality, high-efficiency, 24V constant voltage LED driver designed for both indoor and outdoor using LED power supply applications. Featuring IP65 waterproof LED power supply design and waterproof aluminium housing with full potting, it ensures excellent heat dissipation, strong durability, and reliable operation in demanding environments. This ultra-thin LED driver delivers stable output with ultra-low ripple voltage (≤0.5%), high safety, and long lifespan.
With advanced GaN (Gallium Nitride) technology, the JS-MNS Series provides higher efficiency, smaller size, and lower temperature rise compared to traditional silicon solutions. The LED switch power supply supports 100% rated output power, making it ideal for constant voltage LED strip lighting power supply and other LED strip lighting systems.
Designed for 24-hour continuous operation with a maximum output power of 400W, this series is perfect for engineering projects and commercial applications. The high-quality waterproof LED switching power supply meets CE & RoHS standards, ensuring compliance with European market requirements. Available at factory price, it is also suitable for OEM/ODM projects.
Product Overview & Key Features
Advanced GaN (Gallium Nitride) Technology
Higher efficiency, higher power density,smaller size and significantly lower heat generation compared to traditional silicon solutions.
GaN vs Traditional Constant-Voltage Power Supply - Comparison Chart
|
Feature |
GaN Constant-Voltage PSU |
Traditional Constant-Voltage PSU |
|
Key Power Device |
Gallium Nitride (GaN) FET |
Silicon (Si) MOSFET |
|
Switching Frequency |
Very High (MHz-level) |
Lower (kHz-level) |
|
Efficiency |
High (≈94–96%) |
Lower (≈88–92%) |
|
Heat Generation |
Lower |
Higher |
|
Size &Weight |
Smaller &Lighter |
Larger &Heavier |
|
Power Density |
Higher |
Lower |
|
EMI (Electromagnetic Interference) |
Lower (better noise performance) |
Higher |
|
Thermal Management |
Easier |
Requires more cooling |
|
Output Stability |
Better ripple control |
Moderate |
|
Cost |
Higher |
Lower |
|
Design Complexity |
Higher (requires advanced layout) |
Lower (mature solution) |
True Rated Output Power
100% real output power with no false labeling, ensuring reliable system design and stable operation.
Ultra-Low Ripple Voltage (≤0.5%)
Flicker-free lighting, reduced EMI, and enhanced LED lifespan.
High Safety & Reliability
3750V isolation voltage, stable output under heavy load, suitable for 24/7 continuous operation.
Durable Aluminium Housing With Waterproof Potting
IP65 grade, excellent heat dissipation, strong mechanical strength for long-term outdoor use.
Certified for European Market
CE & RoHS compliant, meeting safety, environmental, and performance requirements.
3-Year Warranty
Designed for long service life and low maintenance costs
GaN (Gallium Nitride) technology - high efficiency with low tempera
- Ture rise and compact size
- Ultra-low ripple voltage down to 0.5%, ensuring high reliability.
- 3-year warranty long lifespan, ideal for engineering projects.
- 3750V high-voltage resistance for enhanced safety.
- Constant voltage & constant current, no flicker even under heavy load.
- IP65 grade for outdoor using
Applications
The MNS Series is ideal for:

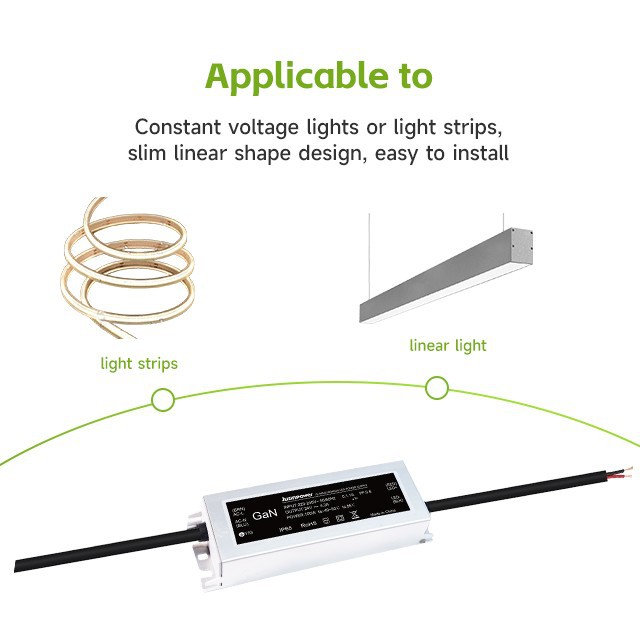

- Constant voltage LED strip lighting power supply
- Outdoor building lighting system
- Architectural and facade lighting
- Linear and profile lighting
- Advertising light boxes and signage
- Commercial and industrial luminaires
- OEM lighting fixtures and custom projects
Hot Tags: waterproof ip65 24v constant voltage, China waterproof ip65 24v constant voltage manufacturers, suppliers, factory, 24v 50w, constant voltage led driver for closet lighting, constant voltage led driver for coop lighting, constant voltage led driver for kindergarten lighting, constant voltage led driver for pet boutique memorial lighting, constant voltage led driver for pet gift shop memorial lighting
Product Specifications
Input voltage ..............................................................220–240 VAC (standard)
Input frequency ....................................................................................50/60 Hz
Input Efficiency....................................................................90%@50W full load
93%@100W full load
94%@200W full load
94.5%@300W full load
95%@400W full load
Input Power Factor........................................>0.5@230Vac/50Hz(75%)full load
Input AC Current(max)......................................0.5A@176Vac 50W full load
1.1A@176Vac 100W full load
2.0A@176Vac 200W full load
2.5A@176Vac 300W full load
3.3A@176Vac 400W full load
Standby power .........................................................................................<0.5W
Inrush current(cold engine start)max..........................55A peak @230Vac 50W
101A peak @230Vac 100W
112A peak @230Vac 200W
136A peak @230Vac 300W
143A peak @230Vac 400W
Leakage current(max).............................................................<0.5mA@230Vac
Output Ripple voltage.....................................<150mV@24V 50W/100W/200W
<300mV@48V 50W/100W/200W
<240mV@24V 300W/400W
<400mV@48V 400W
Output voltage regulation factor....................................................±2% full load
Output No-load output voltage..............................................................24V/48V
Start Time..................................................................................<0.7S@230Vdc
Over Temperature........................................When temperature is too high,shut down the output,return to normal after release
Over load...........................................When the output voltage is over 1.2 times,the product is protected such as hiccup
Short Circuit.........................................Enter hiccup mode and return to normal after release
Environmental
Insulation and pressure resistance.....................................3750Vac@5mA 60S
Operating Temperature.................................................................-20℃ to 50℃
Storage Temperature,Humidity....................................................-40℃ to 80℃,
10-90%RH
Warranty Tc...............................................................50000Hour (s)@TC:<80℃
Surge protection....................................................................................L-N 2KV
IP Rating......................................................................................................IP65

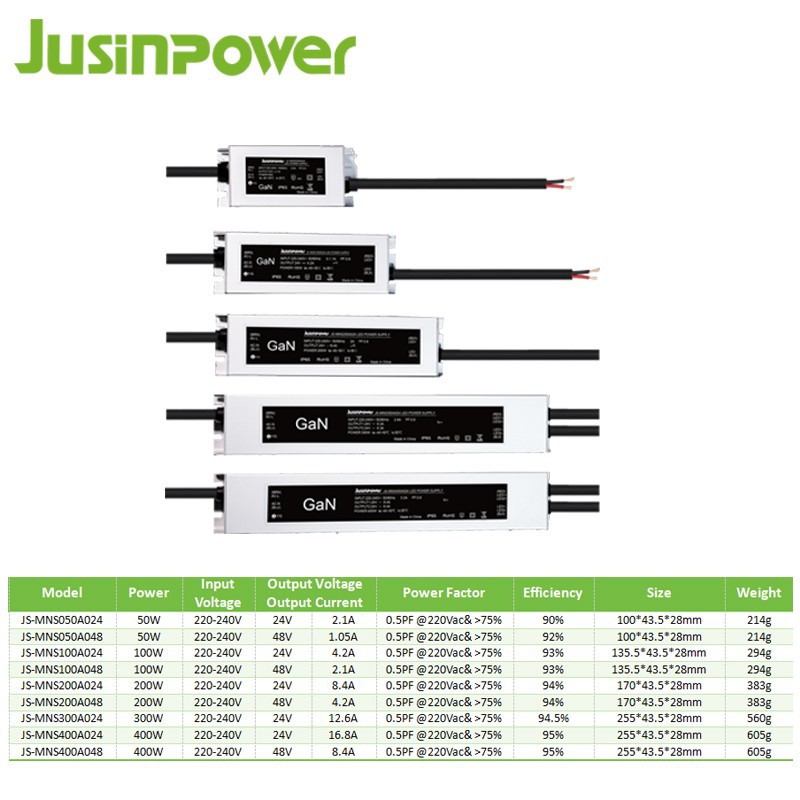

Product Series
|
Model |
Power |
Input Voltage |
Output Voltage Output Current |
Power Factor |
Efficiency |
Size |
Weight |
|
|
JS-MNS050A024 |
50W |
220-240V |
24V |
2.1A |
0.5PF @220Vac& >75% |
90% |
100*43.5*28mm |
214g |
|
JS-MNS050A048 |
50W |
220-240V |
48V |
1.05A |
0.5PF @220Vac& >75% |
92% |
100*43.5*28mm |
214g |
|
JS-MNS100A024 |
100W |
220-240V |
24V |
4.2A |
0.5PF @220Vac& >75% |
93% |
135.5*43.5*28mm |
294g |
|
JS-MNS100A048 |
100W |
220-240V |
48V |
2.1A |
0.5PF @220Vac& >75% |
93% |
135.5*43.5*28mm |
294g |
|
JS-MNS200A024 |
200W |
220-240V |
24V |
8.4A |
0.5PF @220Vac& >75% |
94% |
170*43.5*28mm |
383g |
|
JS-MNS200A048 |
200W |
220-240V |
48V |
4.2A |
0.5PF @220Vac& >75% |
94% |
170*43.5*28mm |
383g |
|
JS-MNS300A024 |
300W |
220-240V |
24V |
12.6A |
0.5PF @220Vac& >75% |
94.5% |
255*43.5*28mm |
560g |
|
JS-MNS400A024 |
400W |
220-240V |
24V |
16.8A |
0.5PF @220Vac& >75% |
95% |
255*43.5*28mm |
605g |
|
JS-MNS400A048 |
400W |
220-240V |
48V |
8.4A |
0.5PF @220Vac& >75% |
95% |
255*43.5*28mm |
605g |
Note: Besides the above specifications, other parameters can be customized. Please contact the relevant sales for further details.
FAQ
Q1. Are you a manufacturer or trading company?
A1. We are a professional manufacturer of producing led drivers for more than 10 years.
Q2. What is your MOQ?
A2. Our MOQ is 200pcs. But can be negotiable based on different models.
Q3. What is your delivery time ?
A3. Our delivery time is 7-20 days which is depended on models and quantity.
Q4. Do you accept OEM/ODM?
A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.
Q5. Service
A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.
Q6. How about your R&D capability?
A6. We have professional engineers for certificates and research&development.
We have passed cUL, FCC, ENEC,SAA, TUV, ROHS, CE, CB, CCC.
