24V 50W Non-Dimmable Constant Voltage Driver
This high cost-performance constant voltage power supply is ideal for any constant voltage LED strip lamp, offering reliable performance across various applications. With a wide input range of 120-277Vac, it provides stable output for LED strips, ensuring consistent brightness and smooth operation.
1.Frequency 50 – 60 Hz
2. Nominal output voltage 24V
3.Suitable for various commercial indoor fixtures
4.For indoor use
Top Features and Benefits:
Input 120-277Vac
24V Constant
Voltage Output
Ultra-thin size
High PF & Low THD
3 Years Warranty

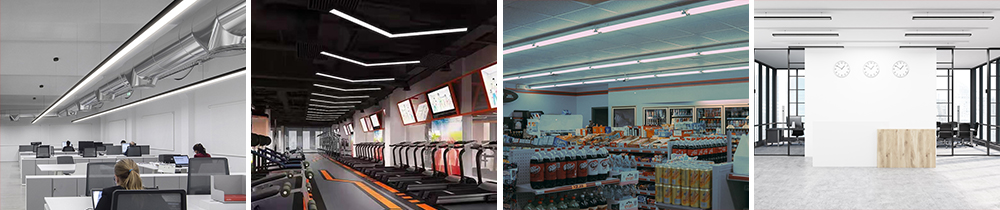

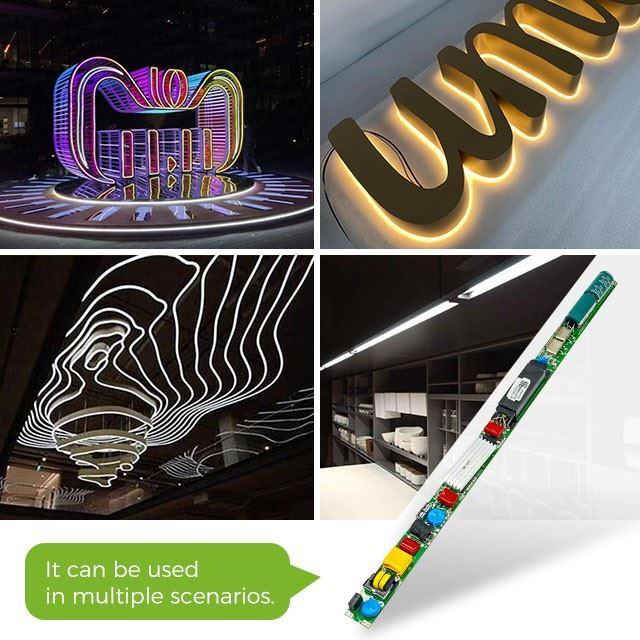

Application Scenario:
Industrial and Commercial Spaces: In places like warehouses, factories, and supermarkets, 24V constant voltage LED tube drivers are used to provide efficient lighting solutions, helping to save energy and reduce maintenance costs.

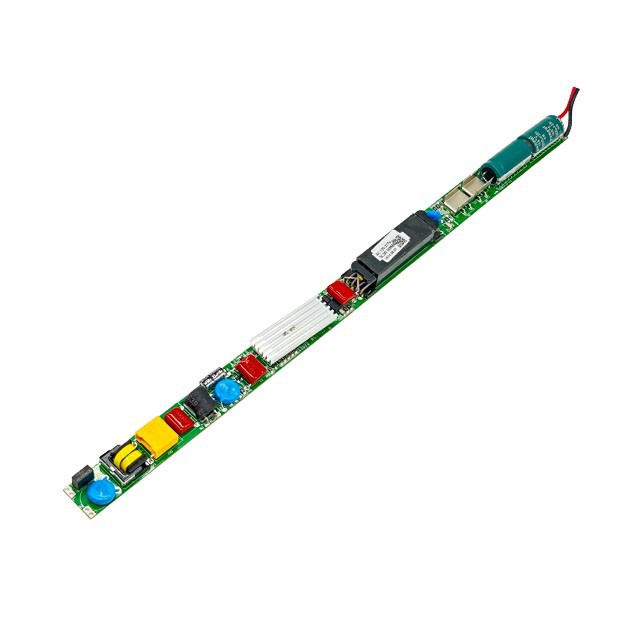

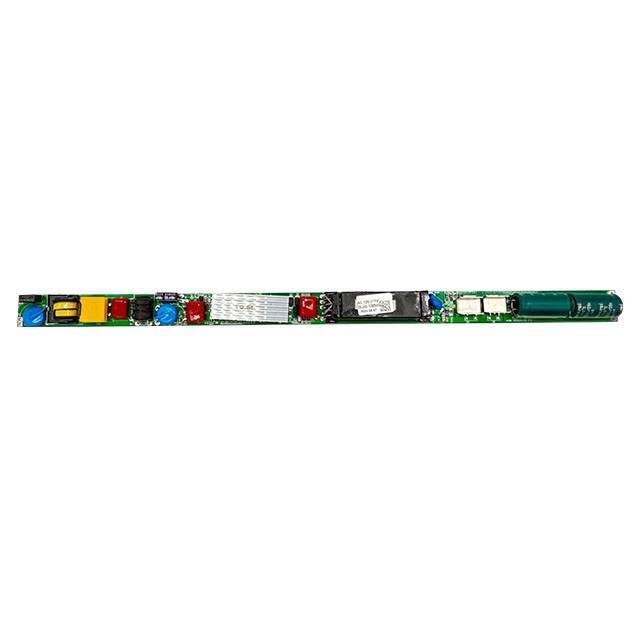

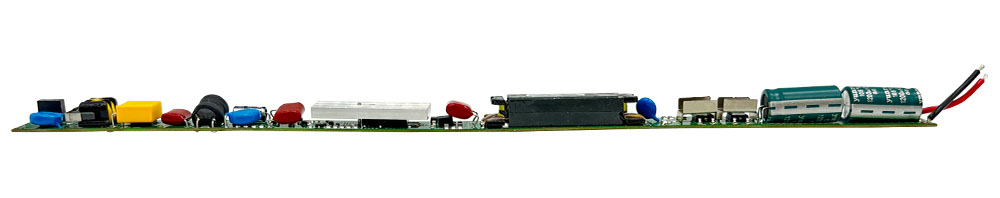

Product Details:
24V constant voltage driver that is small, powerful, and has a maximum output power of 50W. It is appropriate for usage in small spaces with linear lighting fixtures.
|

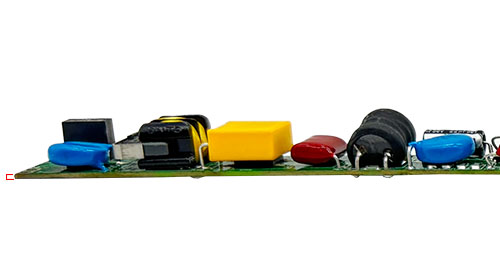

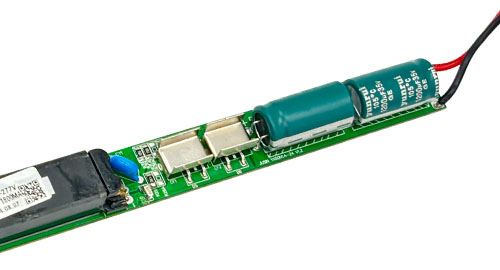

uses durable electrolytic capacitors and high-quality parts. |
The thickness of the copper foil is about one ounce. |
 |
 |

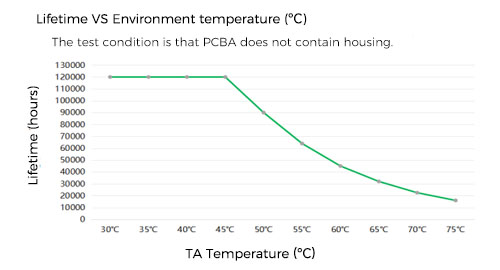

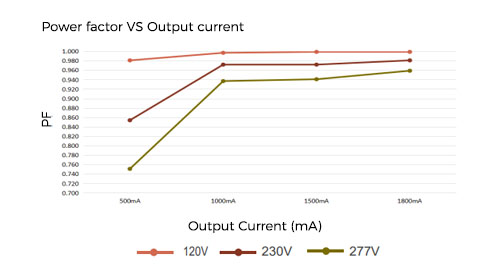

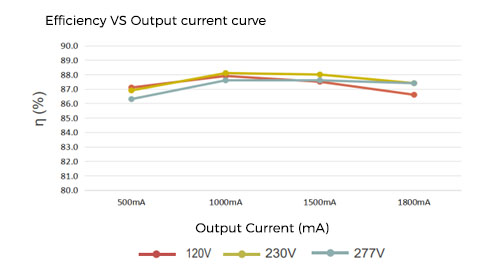

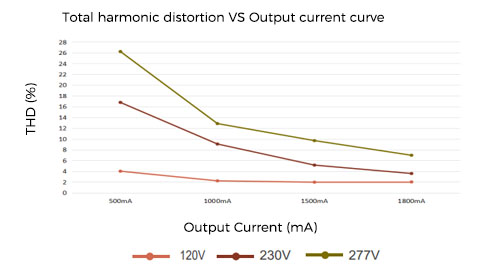

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 500mA to1800mA

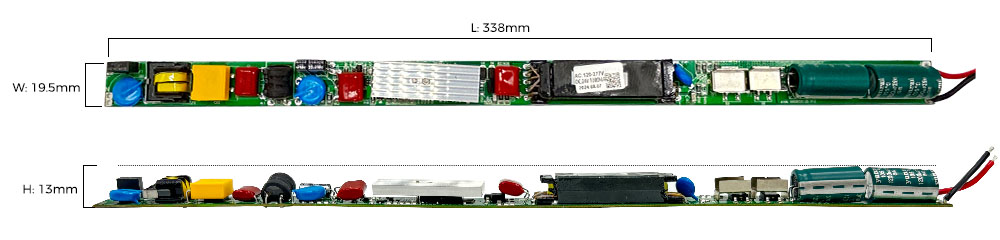

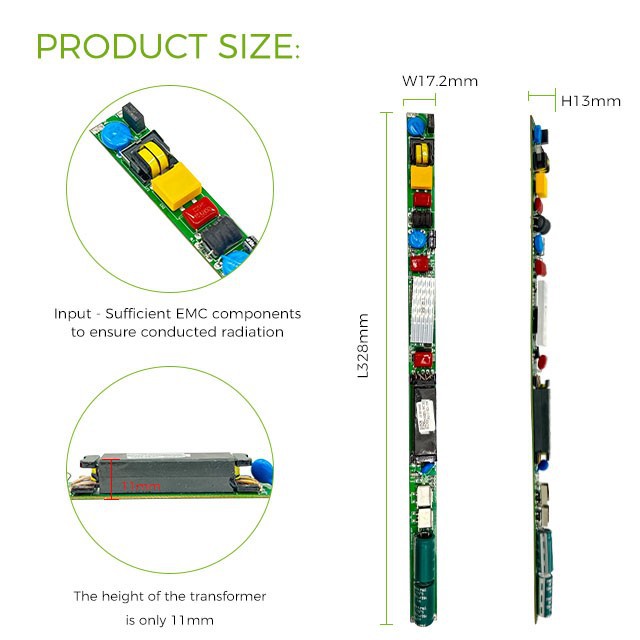

Dimension(mm):
Length: 338mm Width: 19.5mm Height: 13mm

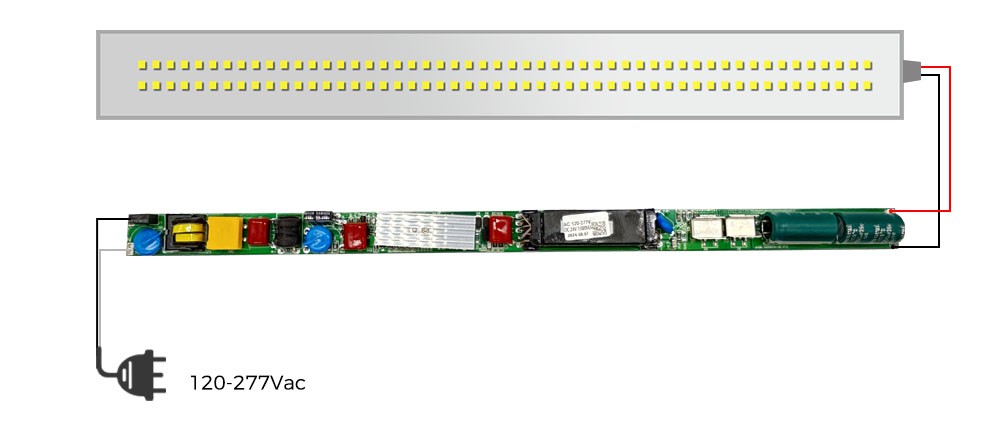

Wiring Instructions：
AC input terminal, the terminal is connected to the mains (120-277Vac), the input blue wire connected to N, brown wire connected to L. The other terminal is the DC output terminal red wire connected to the LED +, black wire connected to the LED -, respectively, with the positive and negative LED lights connected.

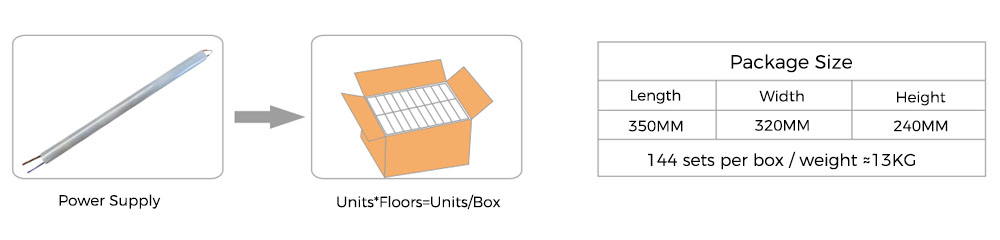

Product Packaging:
Hot Tags: 24v 50w non-dimmable constant voltage driver, China 24v 50w non-dimmable constant voltage driver manufacturers, suppliers, factory, Tunable White LED Driver, 3cct LED Driver, 50 60Hz, Maximum voltage 347V, 6000K Dimming, 230Vac input
YX50N1A
|
Performance |
||
|
Model |
YX50N1A-24 |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
86%@120Vac full load |
|
|
87%@230Vac full load |
||
|
87%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(10-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(30-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(45-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (10-100 %) full load |
|
|
<20 %@230Vac (40-100 %) full load |
||
|
<20 %@277Vac (65-100 %) full load |
||
|
AC Current (Max) |
0.41A@120Vac full load |
|
|
0.21A@230Vac full load |
||
|
0.18A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1800mA/43W CV |
|
Ripple Voltage
|
<3% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
338 mm |
|
Width |
19.5mm |
|
Height |
13 mm |
|
Weight (g) |
78.5g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Environmental temperature |
Ta=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet |
|
YX50N1A-24 |
50W |
120-277Vac |
24V |
1800mA |
0.9 |
87% |
L338*W19.5*H13 |
UL,FCC,CE |

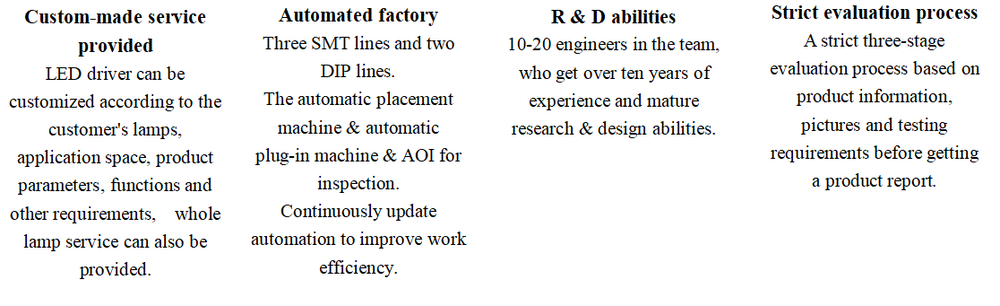

OEM/ODM Service Flow
